Description



Chenggong Loaders CG932H,CG946G,CG948H, CG956C,CG956G,CG956H,CG958H,CG990H,CG866H,CG862H

Related parts:

Front Axle & Rear Axle

Z35H05 后桥（一） Rear Axle (I)
Z40F06 前桥 Front Axle1

GB119-86 销A12X120 Pin A12X120 6
2 GB119-86 销A12X100 Pin A12X100 6
3 Z30060000006 制动器活塞 Piston 4
4 Z30060000008 回位弹簧 Spring 12
5 Z35F0602 制动片 Brake Disc 4
6 Z30060000005 支板 Axle 4
7 Z30060000007 太阳轮 Sun Gear 4
8 Z300602 轮边减速器 Hub Reducer 4
9 Z30060000004 内齿圈 Inner Gear Ring 4
10 Z30060000003 锁紧螺母 Nut 4
11 Z30060000002 桥壳 Axle Case 2
12 Z300605 呼吸螺塞总成 Connector 2
13 Z30060000001 半轴 Half Shaft 4
14 Z30060000009 桥壳长螺栓 Bolt 32
15 Z30050000001 桥壳 Axle Case 2
B1 GB894.1-86 挡圈75 Snap Ring 75 4
B2 GB120-86 销B12X55 Pin B12X55 12
B3 GB297-93 轴承32018 Bearing 32018 4
B4 CG325-80 垫圈33 Washer 33 4
B5 CG326-80 螺塞 Plug M33X2 2
B6 GB297-93 轴承32020 Bearing 32020 4
B7 GB13871-92 密封圈FB150180 Seal Ring FB150180 4
B8 GB5786-86 螺栓M24X2X50 Bolt M24X2X50 64
B9 GB97.2-85 垫圈24 Washer 24 80
B10 GB5785-86 螺栓M24X2X180 Bolt M24X2X180 16
B11 GB5785-86 螺 栓
M16X1.5X100 Bolt M16X1.5X100 12
B12 GB97.2-85 垫圈16 Washer 16 64
B13 JB982-77 垫圈14 Washer14 4
B14 CG302.12-95 螺塞M14X1.5 Plug M14X1.5 4

Z40F0501 Z40F0601 齿轮箱（一） Diferential(I)

1 CG50.6.5 磁铁油塞 Plug 2
2 Z30050100001 后支承轴 Shaft 2
3 Z30060100011 制动器油缸 Cylinder 2
4 Z30050100005 齿轮箱壳体 Differential Body 1
5 Z30060100001 齿轮箱壳体 Differential Body 1

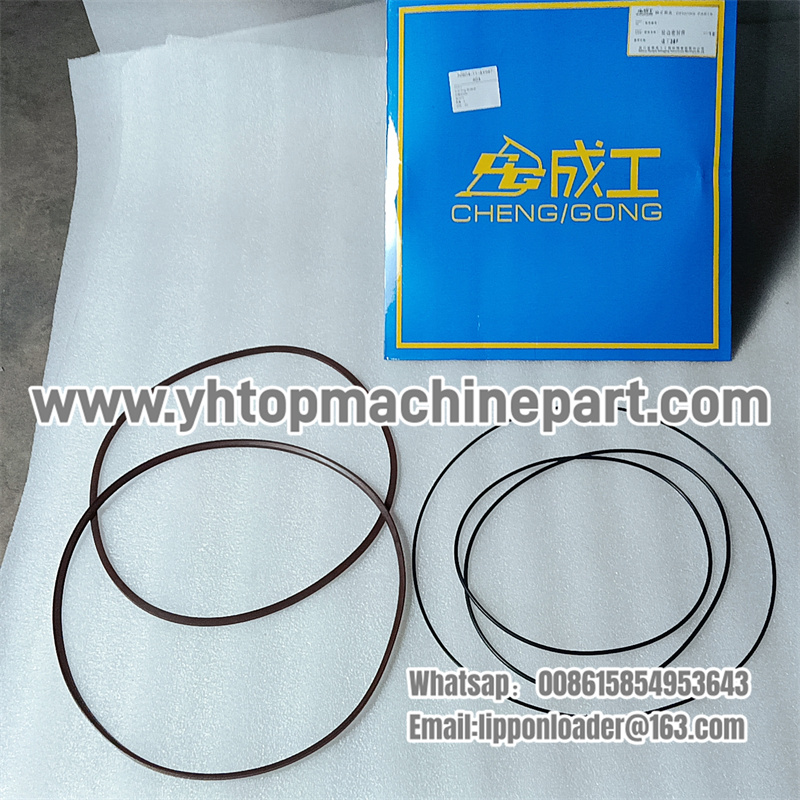

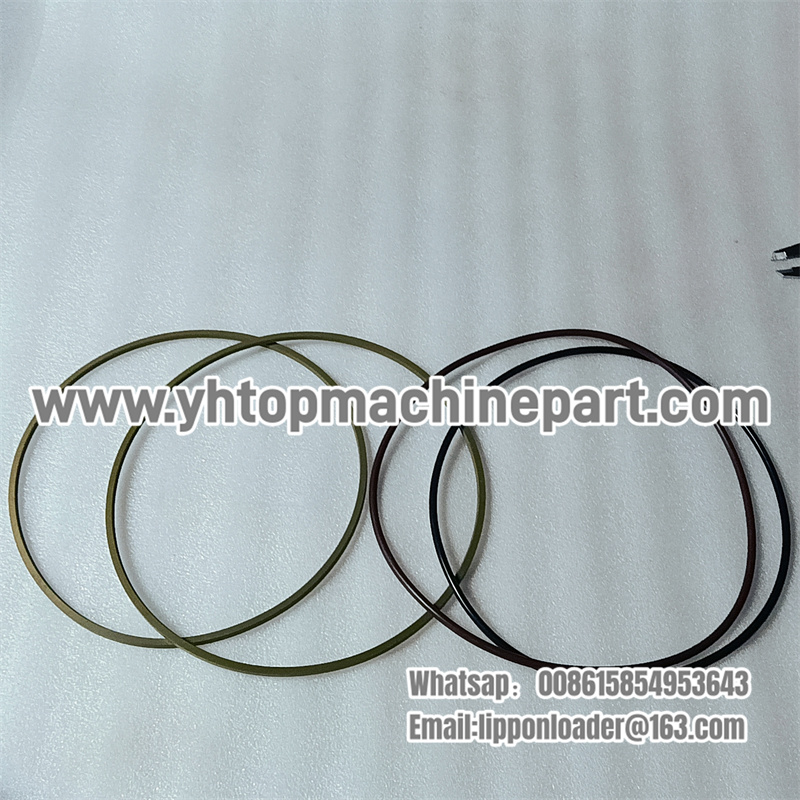

6 Z30060100002 油塞密封圈（II） Seal Ring (II) 4
Z30060100003 油塞密封圈（III） Seal Ring (III) 4
7 Z30060100015 油塞密封圈（I） Seal Ring (I) 4
8 Z30060100005 轴承外套（大端） Sleeve 2
9 Z30060100009 调整螺母（大端） Nut 2
10 Z30060100013 轴承外套（小端） Sleeve 2
11 Z30060100014 调整螺母（小端） Nut 2
12 Z30060100006 调整螺母锁紧垫圈 Nut 4
13 Z30060100027 排气塞 Plug 4
14 ZL30B.6.6 排气嘴 Connector 2
15 Z40F050100001 主动锥齿轮（后桥） Drive Bevel Gear 1
16 Z40F060100003 主动锥齿轮（前桥） Drive Bevel Gear 1
17 Z30060100016 主传动调节垫片 Gasket 2
18 Z40F060100002 中壳 Housing 2
19 Z30050100003 轴承压紧垫圈（后桥）Gasket 1
20 Z30060100006 螺母 Nut 1
21 Z30060100024 小盖纸垫 Gasket 2
22 Z40F060100005 小盖 Cap 2
23 CG50.6.1-21 防尘罩 Dust Cowl 2
24 Z40F050100002 连接凸缘（后桥） flange 1
25 CG50.6-23S 挡板 Retaining Plate 1
26 Z30060100021 压板 Plate 1
27 Z30060100019 轴承调节垫片 Gasket 1
28 Z30060100020 连接凸缘（前桥） Flange 1
29 Z30060100022 O型圈 o-Ring 1
30 Z30060100018 轴承压盖 Cap 1
B1 GB5786-86 螺栓M16X1.5X35 Bolt M16X1.5X35 6
B2 GB97.2-85 垫圈16 Washer 16 16
B3 CG325-86 垫圈33 Washer 33 4
B4 CG326-80 螺塞M33X2 Plug M33X2 4
B5 GB70-85 螺钉M12X80 Screw M12X80 6
B6 GB297-93 轴承32312 Bearing 32312 2
B7 GB3452.1-92 O形圈140X3.55 O-Ring 140X3.55 4
B8 GB97.2-85 垫圈16 Washer 16 16
B9 GB5786-86 螺栓M16X1.5X40 Bolt M16X1.5X40 16
B10 GB297-93 轴承30311 Bearing 30311 2
B11 GB97.2-85 垫圈8 Washer 8 12
B12 GB5786-86 螺栓M8X1X25 Bolt M8X1X25 12
B13 GB1387.1-92 密封圈075095 Seal Ring 075095 2
B14 GB5786-86 螺栓M12X50 Bolt M12X50 1

Z40F0501 Z40F0601 齿轮箱（二） Differential(Ⅱ)

1 Z30060100025 半壳螺栓 Bolt 12
2 Z40F060100001 从动锥齿轮 Driven Bevel Gear 1
3 Z30060100012 差速器半壳I Differential Case I 1
4 CG50.6.1-9 大锥齿轮垫片 Pinion Gasket 2
5 CG50.6.1-12 大锥齿轮 Bevel Gear 2
6 CG50.6.1-14 小锥齿轮垫 Pinion Gasket 4
7 CG50.6.1-13 小锥齿轮 Pinion 4
8 Z30060100028 十字轴 Cross Shaft 1
9 Z30060100008 差速器半壳（II） Differential Case II 1
B1 GB297-93 轴承32019 Bearing 32019 1
B2 GB297-93 轴承32017 Bearing 32017 1

Z300602 轮边减速器 Hub Reducer

1 Z30060200004 防转垫圈 Washer 6
2 Z30060200002 行星齿轮 Gear 3
3 Z30060200005 轴套 Sleeve 3
4 Z30060200003 行星轮轴 Planet Shaft 3
5 Z30060200001 行星架 Planet Carrier 1
B1 GB879-86 销8X35 Pin 8X35 3
B2 GB879-86 销5X35 Pin 5X35 3
