Description

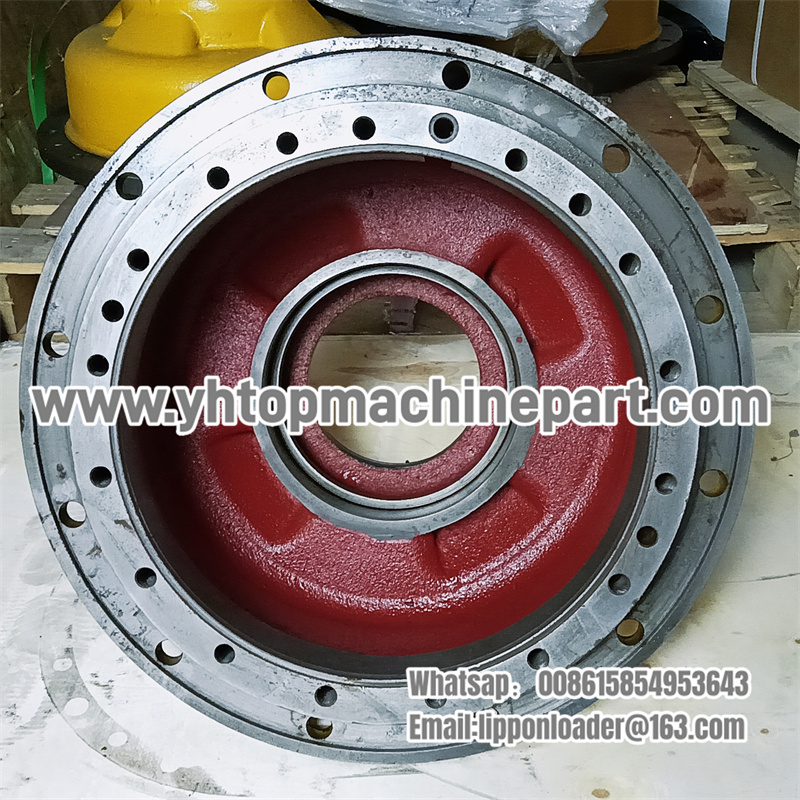

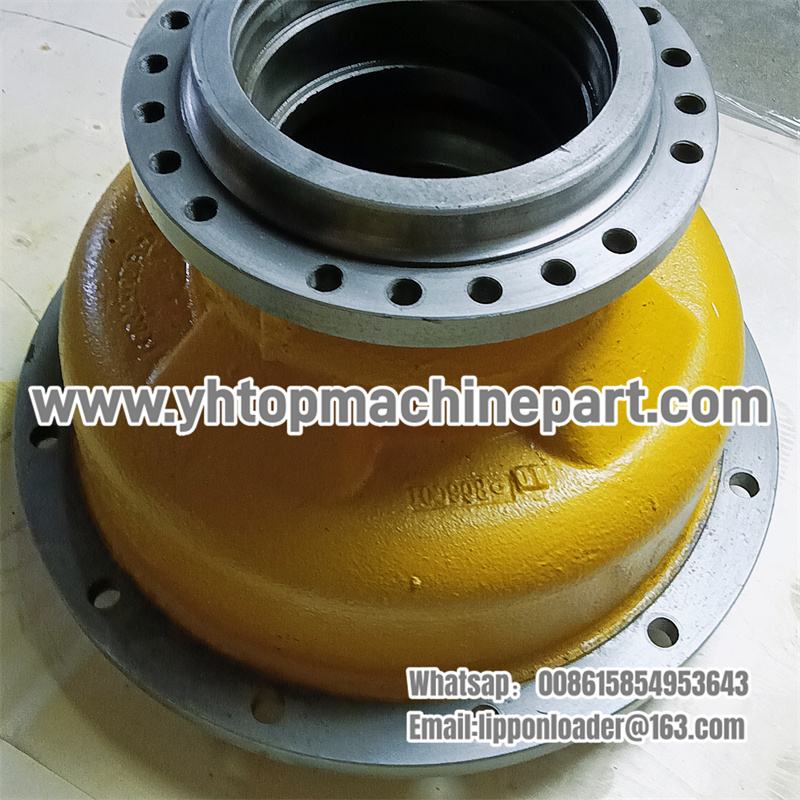

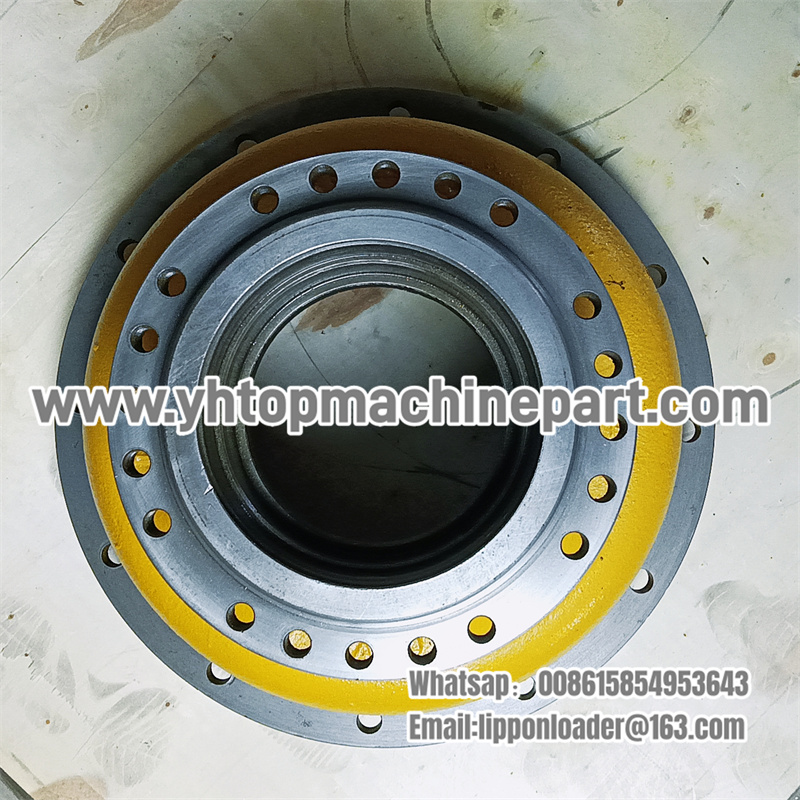

Wheel Hub Z5EII060000003 ChengGong CG956 CG957 CG958 Loader

1 CG50.5.2-1 支承架（前） Support Carrier(Front) 1
2 CG50.5.2-2 衬套 Bushing 1
3 ZL50F0601 齿箱 Differential 1
4 ZL30B.6-22 排气管 Exhaust Hole 2
5 Z5EII050000001 后桥壳 Axle Case 1
6 CG50.5.1-3 衬套 Bushing 1
7 CG50.5.1-1 支承架（后） Support Carrier(Rear) 1
8 CG50.5.1-4 耐磨板 Plate 2
9 CG50.5.1-5 转盘 Disc 1
10 CG50.5.1-2 端盖 Cover 1
11 CG50.6.5-2 磁芯 Magnet Core 1
12 CG50.6.5-1 油塞体 Oil Plug Body 1
B1 HG4-692-67 油封PD180X220X18 Oil Seal PD180X220X18 2
B2 GB3452.1-82 O形圈224X5.3 O-Ring 224X5.3 1
B3 CG325-80 垫圈42 Washer 42 1
B4 JB1000-77 螺塞M42X2 Threaded Plug M42X2 1
B5 GB93-87 垫圈16 Washer 16 16
B6 GB5783-86 螺栓M16X45 Bolt M16X45 10
B7 GB5782-86 螺栓M16X35 Bolt M16X35 5
B8 GB1152-79 油杯M10X1 Oil Cup M10X1 3
B9 GB32.1-88 螺栓M20X50 Bolt M20X50 4
B10 GB93-87 垫圈20 Washer 20 4
B11 JB982-77 垫圈36 Washer 36 1
B12 GB343-82 锁紧钢丝 Lock Steel 1
B13 HG4-692-67 油封PD130X160X15 Oil Seal PD130X160X15 1

1 Z50F0601 齿箱 Differential 1
2 ZL30B.6-22 排气管 Exhaust Hole 2
3 Z5EII060000001 前桥壳 Axle Case 1
4 GB97.2-85 垫圈24 Washer 24 8
5 GB889-86 自锁螺母M24X2 Nut M24X2 8
6 CG50.6.5-2 磁芯 Magnet Core 1
7 CG50.6.5-1 油塞体 Oil Plug Body 1
B1 GB5785-86 螺栓M24X2X210 Bolt M24X2X210 8
B2 JB982-77 垫圈36 Washer 36 1
B3 JB1000-77 螺塞M42X2 Threaded Plug M42X2 1
B4 JB982-77 垫圈42 Washer 42 1

1 Z5EII050000001 后桥壳 Rear Axle Case
Z5EII060000001 前桥壳 Front Axle Case 1
2 Z5EII060000002 支撑轴管 Axle Tube 2
3 CG50.6-19 环 Ring 2
4 Z5EII060000004 制动盘 Brake Disc 2
5 Z5EII060000003 轮毂 Hub 2
6 CG50.6-12 轮毂螺栓 Bolt 32
7 ZL30.6-4 球面螺帽 Nut 32
8 Z50F060000004 支撑盘 Support Disc 2
9 CG50.6-13 套 Sleeve 2
10 CG50.6-8 内齿圈 Inner Gear Ring 2
11 Z50F0602 轮边减速器 Hub Reducer 2
12 ZL30B.6-16 垫圈 Washer 2
13 CG50.6-4 太阳轮 Sun Gear 2
14 Z5EII060000005 半轴 Half Shaft 2
15 CG50.6-7 矩形圈 Retangular Ring 2
16 CG50.6-3 轴堵 Shaft Plug 2
17 CG50.6-2a 端盖 End Cover 2
18 CG50.6-10 挡圈 Snap Ring 2
19 CG50.6-1 矩形圈 Retangular Ring 2
20 Z50F060000001 毡圈油封 Felt Oil Seal 2
B1 GB70-85 螺钉M16X50 Screw M16X50 4
B2 GB93-87 垫圈16 Washer 16 48
B3 GB5783-86 螺栓M16X45 Bolt M16X45 44
B4 GB5783-86 螺栓M20X1.5X50 Bolt M20X1.5X50 16
B5 GB93-87 垫圈20 Washer 20 48

012 Z5EII05 后桥（二）Rear Axle(II)

1 CG50.6.1-3 调整螺母 Adjusting Nut 2
2 CG50.6.1-6 差速器半壳II Differential Case II 1
3 Z50F060100001 从动锥齿轮 Driven Bevel Gear 1
4 CG50.6.1-9 大锥齿轮垫片 Shim 2组
5 CG50.6.1-12 大锥齿轮 Bevel Gear 2
6 CG50.6.1-11 差速器半壳I Differential Case I 1
7 CG50.6.1-8a 十字轴 Cross Shaft 1
8 CG50.6.1-5 锁紧垫片 Lock Washer 2
9 CG50.6.1-4 轴承盖II Bearing Cap II 1
10 CG50.6.1-10 轴承盖I Bearing Cap I 1
11 CG50.6.1-14 小锥齿轮垫 Pinion Gasket 4
12 CG50.6.1-13 小锥齿轮 Pinion 4
13 CG50.6.1-2 桥壳密封垫 Seal Gasket 1
14 CG50.6.1-1 大托架 Bracket 1
15 Z50F060100002 主动锥齿轮 Drive Bevel Gear 1
16 CG50.6.1-16 调整垫片 Adjusting Shim 1组
17 CG50.6.1-17 中壳 Housing 1
18 CG50.6.1-19 垫板 Plate 1
19 CG50.6.1-18 小盖纸垫 Paper Gasket 1
20 CG50.6.1-20 小盖 Cap 1
21 CG50.6.1-21 防尘罩 Dust Coul 1
22 CG50.6.1-22 连接凸缘 Flange 1
23 CG50.6.1-23 挡板 Retaining Plate 1
B1 GB343-82 锁紧钢丝L=200 Lock Wire L=200 2
B2 GB32.1-88 螺栓M10X16 Bolt M10X16 2

1 CG50.6.4-5 垫圈 Washer 6
2 Z50F060200001 双联齿轮 Dual Gear 3
3 Z50F060200004 滚针 Needle 6组
4 Z50F060200003 套 Sleeve 3
5 CG50.6.4-1a 行星架 Planet Carrier 1
6 Z50F060200002 行星轮轴 Planer Shaft 3
B1 GB894.1-86 挡圈42 Snap Ring 42 3
