Description

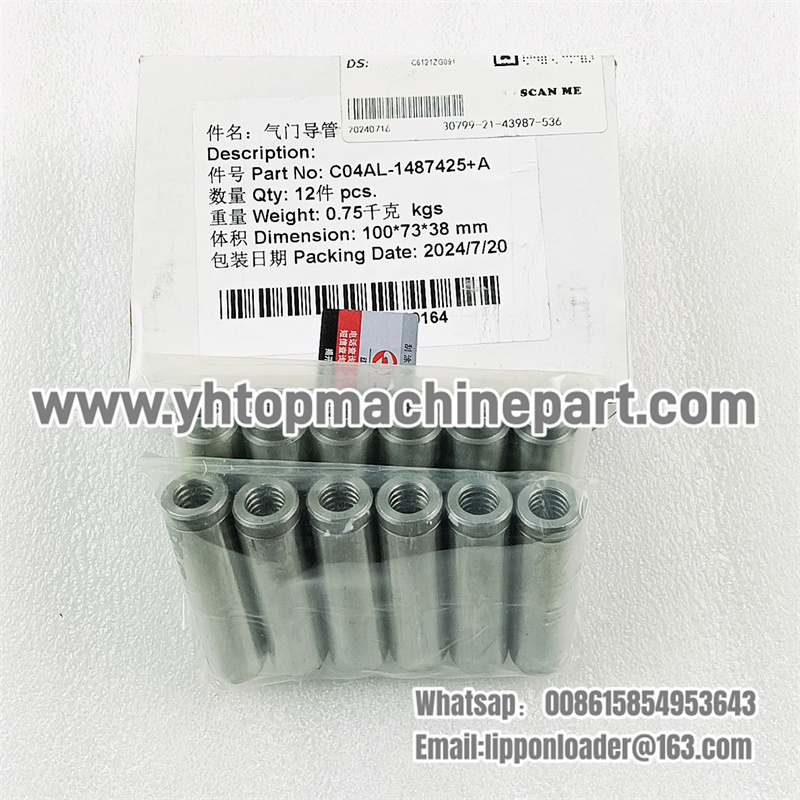

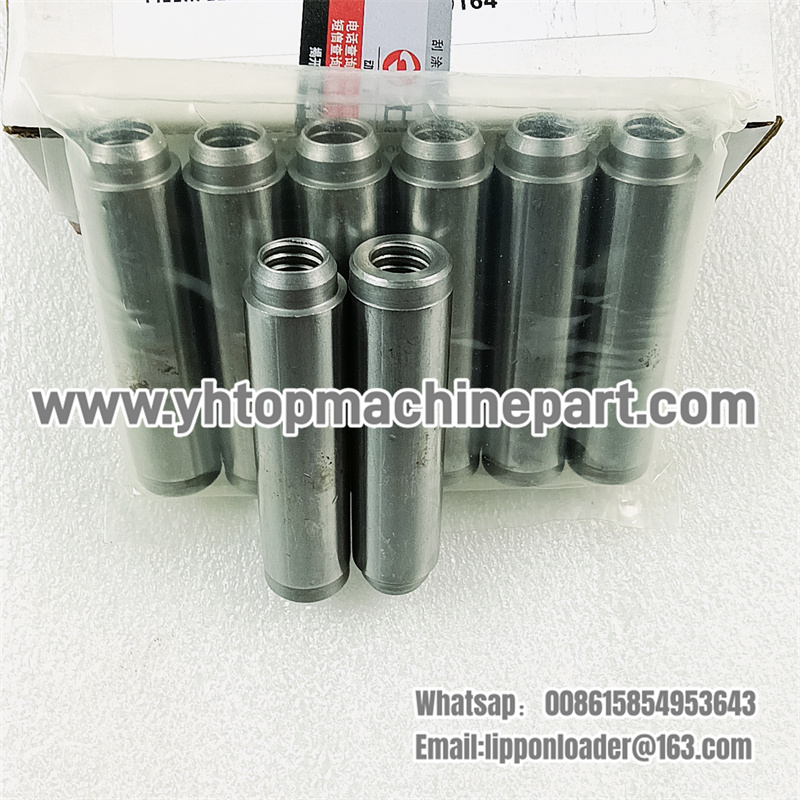

VALVE GUIDE C04AL-1487425 4110000186112 SP105503 PS09274 SP105503 SC11 C6121 3306 Engine part

1 机体装配部件C02AB-7N6550+B CYLINDER BLOCK
2 机体4P0623 CYLINDER BLOCK
3 气缸套C02AL-1105800+A CYLINDER LINER
4 主轴承盖C02AL-M6N8001 A MAIN BEARING CAP
5 推力主轴承盖C02AL-M6N8002 A COVER
6 O形密封圈5S6670(117.1*4.39) O-RING
7 密封带C02AL-2W6134+A SEALING RING
8 主轴承螺栓C02AL-M7S3224+A SCREW
9 凸轮轴轴套C02AL-7M4046+A BUSHING
10 凸轮轴前轴套C02AL-8N4110+A BUSHING
11 机体顶板7N7998 ROOF PLATE
12 机体顶板垫片(六缸)C02AL-7W7546+B SHIM
13 碗形闷头C02AL-4B5387+A PLUG
14 碗形闷头C04AL-3B0623+A PLUG
15 空心圆柱销C02AL-1S9540+A PIN
16 外六角螺塞U564C-8M9307+A PLUG
17 内方头锥管螺塞U561C-2B0858+A PLUG
18 内六角锥管螺塞U561B-7H3171+A PLUG
19 六角头锥管螺塞U562A-5M6214+A PLUG
20 六角锥管螺塞U562A-5M6213+A PLUG
21 平垫圈U382A-2S5658+A WASHER
22 双头螺栓U321A-5S8462+A STUD
23 钢球-GB/T308-9.525 BALL
24 铜垫圈U386A-6F7062+A WASHER
25 圆柱销U362A-8K1207+A PIN
26 圆柱销U362A-5B7652+A PIN
27 圆柱销U362A-8B6349+A PIN
28 O形密封圈U641A-3S5496+A O-RING
29 平垫圈U382A-5M2894+A WASHER
30 圆柱销U362A-2A3798+A PIN
31 盖板C02BL-8L8662+A COVER PLATE
32 垫片C02BL-5S8055+B GASKET
33 内六角沉头螺钉C02BL-8M3267 HEX. SOCKET SUNK SCREW
34 六角头螺栓U311A-0L1351+A SCREW

1 曲轴后油封4W0450 SEALING RING
2 曲轴前油封部件C02CB-9Y9895+A SEALING RING
1 气缸盖机加工部件C04AB-7N8866+A COVER
2 气缸盖C04AL-7C3906+A Cover
3 进气门座 C04AL-7N4448 A VALVE SUPPORT
4 排气门座 C04AL-7N8855 A VALVE SUPPORT
5 碗形闷头C04AL-3B0623+A PLUG
6 碗型闷头C04AL-3P1896+A PLUG
7 碗型闷头C04AL-3S8313+A PLUG
8 旋转弹簧座及挡油罩部件C04AB-1W5300+A SEAT
9 旋转弹簧座部件C04AB-8N7782+B SPRING SEAT
10 挡油罩C04AL-6N7174 A COVER
11 进气门C04AL-6N9915+A INLET VALVE
12 排气门C04AL-6N9916+B EXHAUST VALVE
13 气门导管C04AL-1487425+A VALVE GUIDE
14 气门弹簧C04AL-7S7144+A VALVE SPRING
15 气缸盖垫片C04AL-7E6167+A GASKET
16 气门锁夹C04AL-2A4429+D COLLET
17 封水圈C04AL-9Y1798+A SEALING RING
18 封水圈C04AL-7N8018+A SEALING RING
19 内方头锥管螺塞U561C-2B0858+A PLUG
20 六角锥管螺塞U562A-5M6213+A PLUG
21 O形密封圈U641A-3S5496+A O-RING
