Description

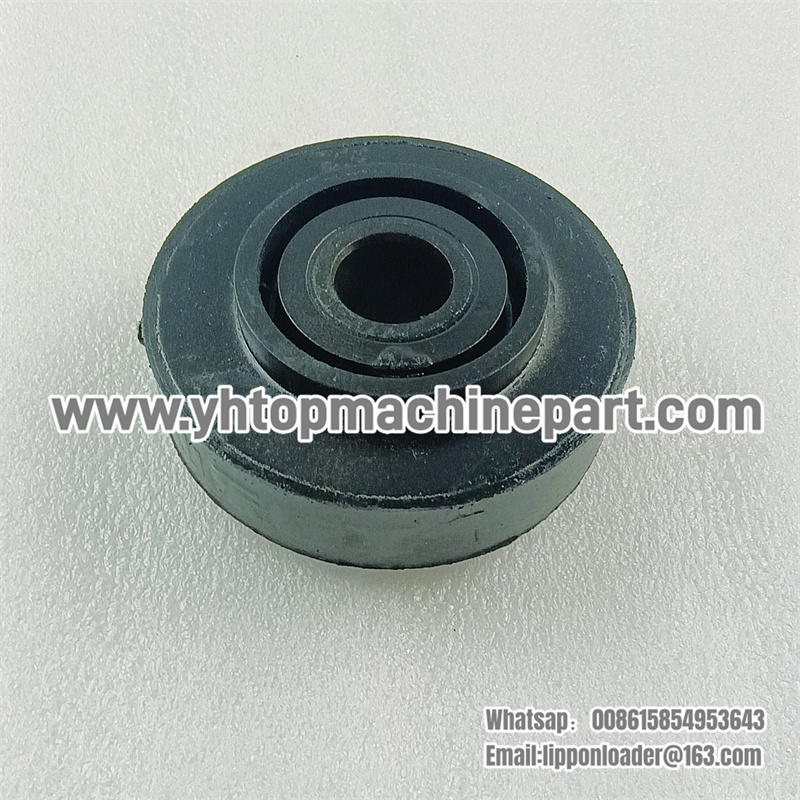

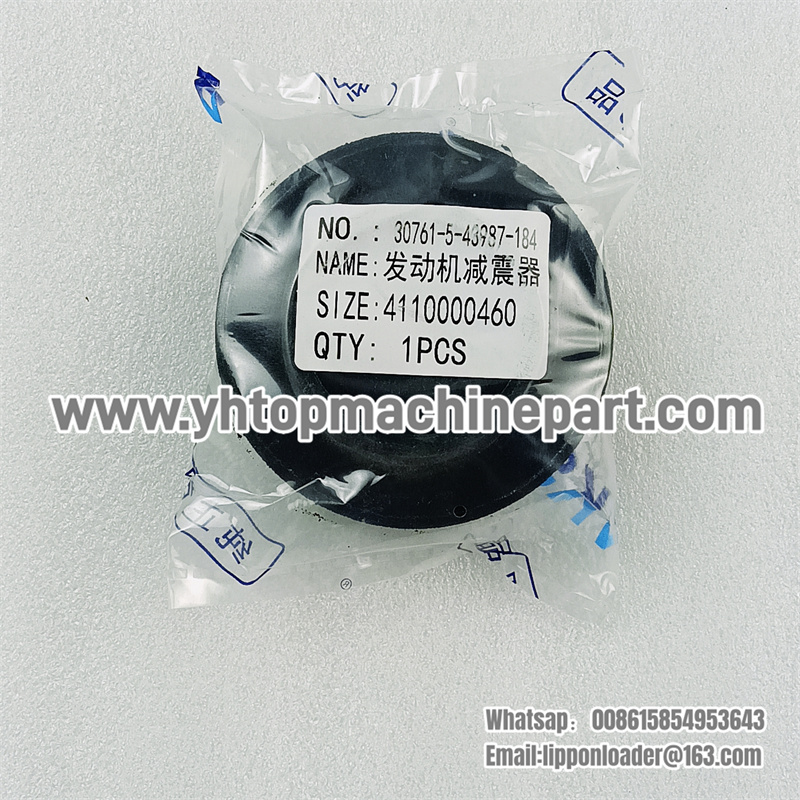

Shock Absorber 4110000460 for LG936L LG938L Wheel Loader

1 发动机总成YC6J125Z-T20（J80GK） ENGINE 4110001692
2 螺栓GB5783-M10*20EpZn-8.8 BOLT 4011000081
3 垫圈GB96.1-10EpZn-300HV WASHER 4015000197
4 上盖板 COVER PLATE 29010051031
5 LG936L消声器 AIR SILENCER 4110001910
6 螺栓GB16674-M8*20EpZn-8.8 BOLT 4011000458
7 压板 PLATE 29010051051
8 隔热板 HEAT INSULATION 29010051071
9 压板 PLATE 29010051041
10 橡胶板 RUBBER PLATE 29010051061
11 固定板 BRACKET 29010018031
12 螺母GB6170-M8EpZn-8 NUT 4013000033
13 操纵软轴 CONTROL CABLE 2010900007
14 管夹LGB167-0322 CLAMP 4041000829
15 缓冲套LGB123-0322 RUBBER SLEEVE 4041000876
16 螺栓GB16674-M8*16EpZn-8.8 BOLT 4011000461
17 胶管HG2491-16*2600 HOSE 4090000177
18 暖风机水阀LG12-NFJSF VALVE 4120000067
19 环箍QC390-D26 CLAMP 4017000024
20 操纵软轴 CONTROL CABLE 29010009202
21 油门踏板 ZY75-H Pedal 4110002509
22 垫圈GB93-6-65Mn SPRING WASHER 4015000035
23 螺栓GB5783-M6*20EpZn-8.8 BOLT 4011000101
24 垫圈GB97.1-6EpZn-300HV WASHER 4015000207
25 螺母GB6170-M6EpZn-8 NUT 4013000028
26 弯钩 ATTACHING HOOK 29010016501
27 直接头 NIPPLE 29220017601
28 垫圈 WASHER 29220000811
29 双头螺柱 STUD 29010000111
30 螺母GB6170-M10EpZn-8 NUT 4013000007
31 垫圈GB93-10-65Mn SPRING WASHER 4015000025
32 软管LGB145-206220 HOSE ASSEMBLY 4041002405
33 回油接头 NIPPLE 29010008691
34 输油胶管 HOSE 29010008701
35 减震器CBB95-2 ABSORBER 4110000460
36 垫圈 WASHER 29010006631
37 接头螺钉 EYE BOLT 29010006621
38 油水分离器组合阀ST-50G VALVE 4120000084
39 螺栓GB16674-M8*25EpZn-8.8 BOLT 4011000455
40 油水分离器支架 BRACKET 29220004021
41 金属软管LG09-JSRG-800 TUBE 4120002039
42 垫圈 WASHER 29220000171
43 垫圈GB97.1-20EpZn-300HV WASHER 4015000176
44 垫圈GB93-20-65Mn SPRING WASHER 4015000030
45 螺栓GB5782-M20*130EpZn-8.8 BOLT 4011000236
46 垫圈 WASHER 29050000121
47 螺母GB6170-M20EpZn-8 NUT 4013000020
48 垫圈GB93-12-65Mn SPRING WASHER 4015000026
49 螺栓GB5783-M12*35EpZn-8.8 BOLT 4011000090
50 垫圈GB97.1-12EpZn-300HV WASHER 4015000168
51 螺栓轴 SCREW 29010001071
52 开口销GB91-2*12EpZn-Q235A SPLIT PIN 4016000120
53 螺钉GB75-M6*10EpZn-22H SCREW 4014000020
54 连接叉 LINK YOKE 29010006681
55 销轴GB882-B6*22EpZn-35 CLEVIS PIN 4016000138
