Description

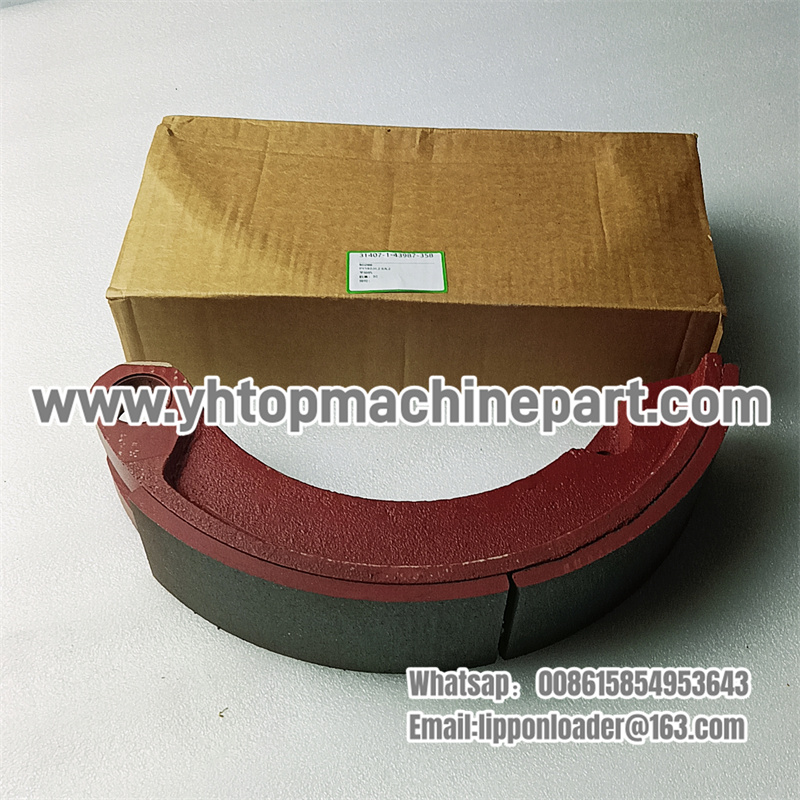

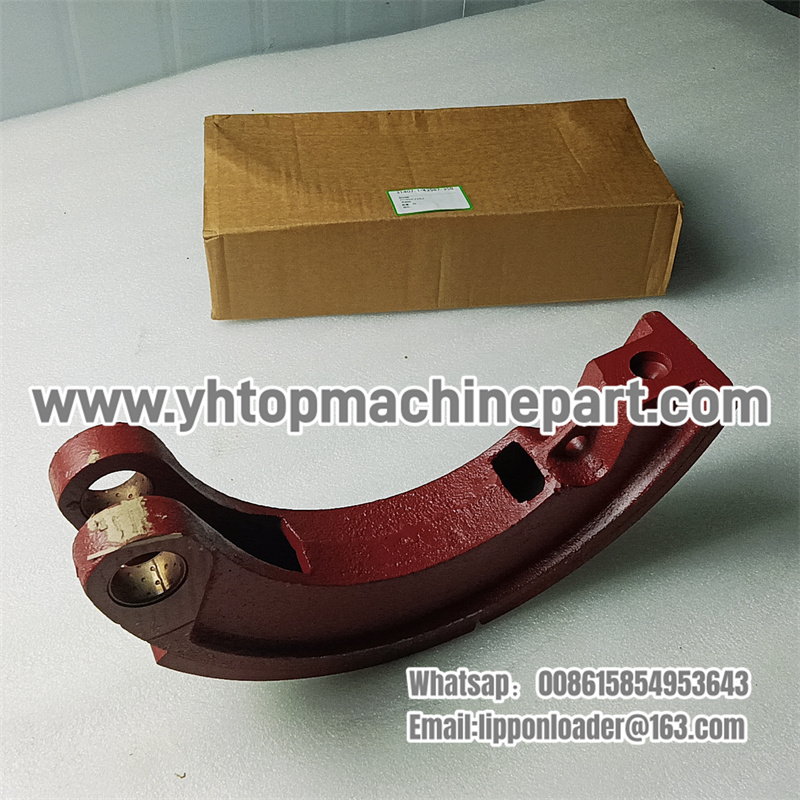

GR165 Grader Motor PY180.H.2.6.3 PY180.H.2.6A.2 SP109955 84787105 Brake Shoe

1 左转向总成 STEERING KNUCKLE 28080002231
2 右旋球头 BALL JOINT 28080002541
3 锁紧螺母GB6173-M30×1.5-10 NUT 4013000319
4 前轮倾斜油缸 100*50*169-473 CYLINDER 4120004762
5 右转向总成 STEERING KNUCKLE 28080002321
6 前轮转向油缸右 63*45*340-577 STEERING CYLINDER 4120004763
7 前轮转向油缸左63*45*340-577 STEERING CYLINDER 4120004764
8 铰接轴 STEERING KNUCKLE 28080002181
9 铰接轴 STEERING KNUCKLE 28080002381
10 转向横拉杆 Tie rod 28080002131
11 螺栓GB5782-M16*50EpZn-8.8 BOLT 4011000510
12 垫圈LGB001-16 WASHER 4040000002
13 支座 SPACER 28080002421
14 垫圈GB97.1-24EpZn-300HV WASHER 4015000167
15 开口销GB91-4*45EpZn-Q235A SPLIT PIN 4016000057
16 螺母 NUT 28080002551
17 衬套 BUSHING 28080002451
18 关节轴承GB9163-GEG40ES-2RS SPHERICAL PLAIN BEARING 4021000289
19 挡圈GB893.1-68-65Mn RETAINING RING 4015000199
20 挡圈GB894.1-40-65Mn RETAINING RING 4015000132
21 复合轴承 BEARING 28080002141
22 锁止垫片 THRUST BEARING 28080002261
23 油杯JB7940.1-M10*1 LUBRICATING NIPPLE 4030000065
24 垫圈GB96.1-12EpZn-300HV WASHER 4015000186
25 铰接轴 STEERING KNUCKLE 28080002351
26 螺栓GB5783-M12*40EpZn-8.8 BOLT 4011000091
27 支座 SPACER 28080002441
28 螺栓GB5783-M12*30EpZn-8.8 BOLT 4011000089
29 支座 SPACER 28080002431
30 向心关节轴承GE35ES-2RS SPHERICAL PLAIN BEARING 4021000290
31 P挡圈GB893.1-55-65Mn RETAINING RING 4015000272
32 隔板 SPACER PLATE 28080002461
33 复合轴承 BEARING 28080002151
34 前桥架 AXLE FRAME 28080002031
35 连杆 LINK ROD 28080002221
36 销轴GB/T882 30*95 PIN 4016000317
37 开口销GB91-6.3*50EpZn-Q235A SPLIT PIN 4016000040
38 前桥标牌 Name plate 28080002851
39 铆钉GB827-3*5-BL2 RIVET 4019000012

锁紧螺母75 500 269 LOCK NUT 4110001903024
2 连接法兰82 513 615 CONNECTION FLANGE 4110001903025
-4.11E+12 N 1
3 防尘罩75 201 748 DUST COVER 4110001903026
-4.11E+12 N 1
4 连接法兰组件82 513 602 CONNECTION FLANGE 4110001903027
5 螺栓M14*1.5*55 50 011 011 SCREW 4110001903028
6 垫圈14 52 020 005 WASHER 4110001903029
7 螺栓M12*1.5*55 50 011 008 SCREW 4110001903030
8 垫圈12 52 020 004 WASHER 4110001903031
9 盖82 513 616 COVER 4110001903032
10 油封53 500 007 SEALING RING 4110001903033
11 油封53 500 008 SEALING RING 4110001903034
12 盖总成82 513 603 COVER 4110001903035
13 轴承31313 54 100 014 BEARING 4110001903036
14 轴承座82 513 607 BEARING SEAT 4110001903037
15 调整垫片组75 200 123 SHIM 4110001903038
16 轴承隔套组82 513 604 SLEEVE 4110001903039
17 轴承31314 54 100 015 BEARING 4110001903040
18 主传动齿轮副82 513 601 CROWN WHEEL 4110001903041
19 挡圈90 52 100 012 RETAINING RING 4110001903042
20 轴承142807Y 54 500 006 BEARING 4110001903043
21 螺栓M8*16 50 004 012 SCREW 4110001903044
22 钢丝2*100 56 000 012 IRON WIRE 4110001903045
23 锁紧片82 513 611 LOCK PLATE 4110001903046
24 差速器螺母75 200 118 NUT 4110001903047
25 组合密封垫24 53 200 005 SEALING WASHER 4110001903048
26 螺塞M24*1.5 75 500 197 PLUG 4110001903049
27 螺栓M8*25 50 009 008 SCREW 4110001903050
28 垫圈8 52 020 002 WASHER 4110001903019
29 盖92 200 130 Cover 4110002967007
30 螺母M14*1.5 75 501 992 NUT 4110001903053
31 主减壳体82 513 608 DIFFERENTIAL CARRIER HOUSING 4110001903054
32 轴承47686/47620A 54 500 003 BEARING 4110001903055
33 差速器总成92 150 026 DIFFERENTIAL 4110001903056
34 螺栓M14*1.5*50 75 500 003 SCREW 4110001903057
35 铜套79 600 096 SLEEVE 4110001903058
36 连接座82 513 610 CONNECTION FLANGE 4110001903059
37 销16*40 51 240 009 PIN 4110001903060
38 螺母M20*2 51 070 006 NUT 4110001903061
39 止推螺栓82 513 609 SCREW 4110001903062
40 螺栓M12*35 50 120 004 SCREW 4110001903063
41 螺栓M16*1.5 75 501 981 SCREW 4110001903064
42 NOSPIN差速器组件57 000 088 DIFFERENTIAL SPIDER 4110001903065
43 差速器壳体组件79 800 003 DIFFERENTIAL HOUSING 4110001903066
44 螺母M16*1.5 75 501 993 NUT 4110001903067
45 垫圈75 500 231 WASHER 4110001903068
1 双排链轮轴83 513 201 SHAFT 4110001903069
2 油封FB160*190*15 53 100 007 SEALING RING 4110001903070
3 轴承33022 54 100 058 BEARING 4110001903071
4 行星减速壳体18 100 017 PLANETARY HOUSING 4110001903072
5 隔套83 513 203 SPACER SLEEVE 4110001903073
6 调整环83 513 204 SHIM 4110001903074
7 轴承32026 54 100 007 BEARING 4110001903075
8 螺钉M10*14 83 513 205 SCREW 4110001903076
9 行星轮架83 513 206 PLANET CARRIER 4110001903077
10 挡板75 600 457 GUARD PLATE 4110001903078
11 滚针75 600 330 NEEDLE ROLLER 4110001903079
12 行星轮79 001 547 PLANET GEAR 4110001903080
13 隔套75 600 334 SPACER SLEEVE 4110001903081
14 行星轮轴79 001 545 PLANET GEAR SHAFT 4110001903082
15 隔套77 000 021 SPACER SLEEVE 4110001903083
16 太阳轮79 001 524 SUN GEAR 4110001903084
17 挡圈50 52 100 009 RETAINING RING 4110001903085
18 调整支柱77 000 133 Adjusting pin 4110003090006
19 挡块73 520 042 BLOCK 4110001903087
20 紧固螺栓M10*1 93 200 021 SCREW 4110001903088
21 螺母M85*2 93 200 016 NUT 4110001903089
22 锥套93 200 018 SLEEVE 4110001903090
23 齿圈支承总成83 513 208 HOUSING 4110001903091
24 齿圈76 101 031 GEAR RING 4110001903092
25 卡环76 101 033 RETAINING RING 4110001903093
26 齿圈支承77 500 940 HOUSING 4110001903094
27 垫圈83 513 207 WASHER 4110001903095
1 堵塞84 787 103 CAP PLUG 4110001903096
2 垫圈8 52 020 002 WASHER 4110001903019
3 螺栓M8*16 50 009 003 SCREW 4110001903098
4 防尘罩84 787 101 DUST COVER 4110001903099
5 制动蹄总成84 787 105 BRAKE SHOE 4110001903100
6 螺栓M12*40 50 009 020 BOLT 4110001903101
7 垫圈12 52 020 004 WASHER 4110001903031
8 制动分泵84 787 110 BRAKE CYLINDER 4110001903103
9 回位弹簧84 787 104 RETURN SPRING 4110001903104
10 制动底板84 787 102 BRAKE ANCHORAGE 4110001903105
11 销轴84 787 109 PIN 4110001903106
12 螺钉M8*12 50 130 001 SCREW 4110001903107
13 铜套84 787 108 SLEEVE 4110001903108
