Description

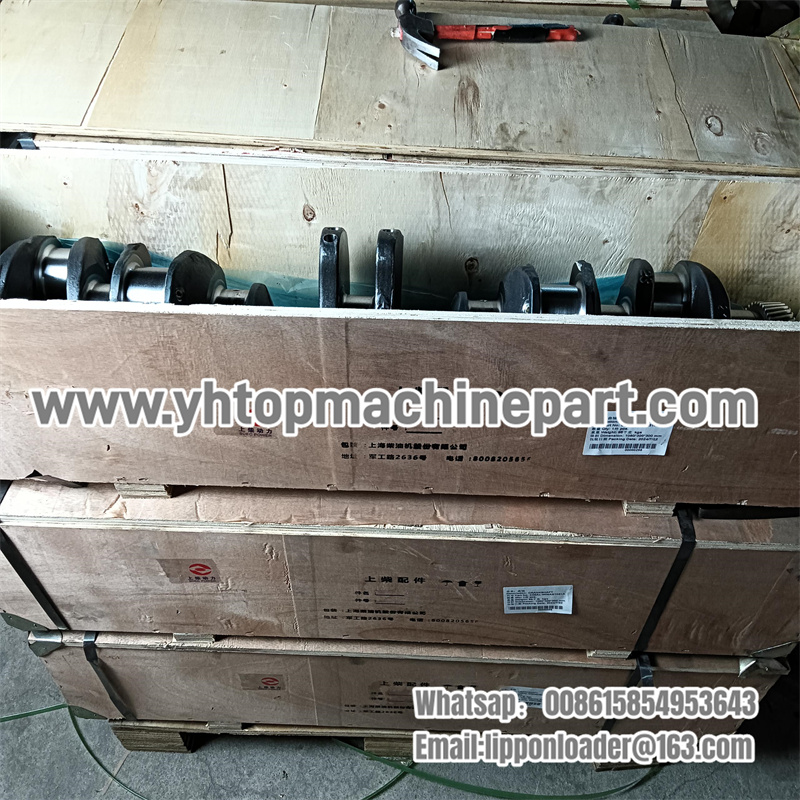

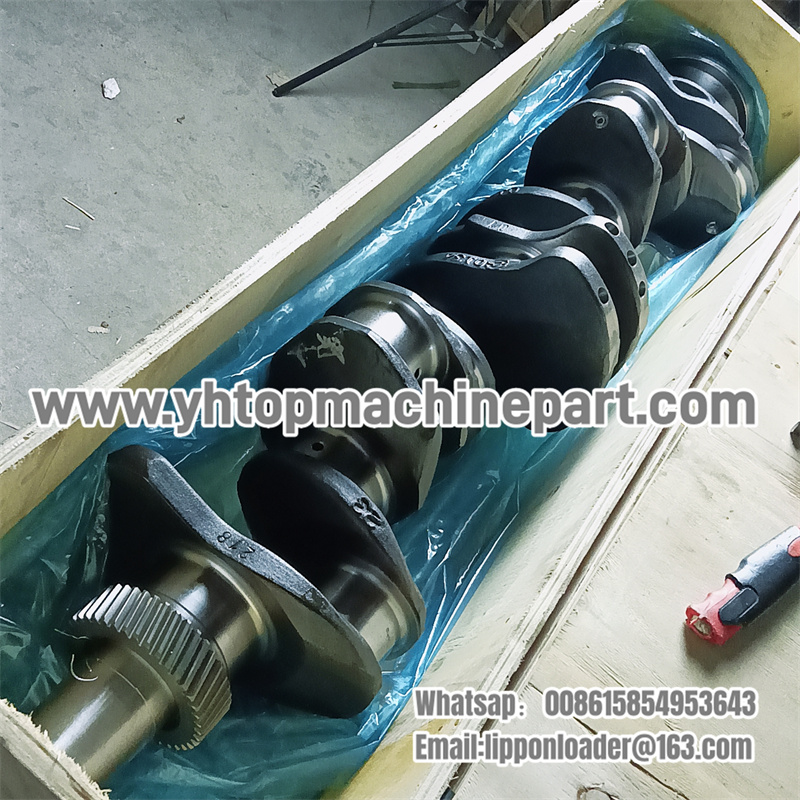

Crankshaft C06AL-M06AL102+A for C6121 3306 Engine Part

1 机体装配部件C02AB-7N6550+B CYLINDER BLOCK
2 机体4P0623 CYLINDER BLOCK
3 气缸套C02AL-1105800+A CYLINDER LINER
4 主轴承盖C02AL-M6N8001 A MAIN BEARING CAP
5 推力主轴承盖C02AL-M6N8002 A COVER
6 O形密封圈5S6670(117.1*4.39) O-RING
7 密封带C02AL-2W6134+A SEALING RING
8 主轴承螺栓C02AL-M7S3224+A SCREW
9 凸轮轴轴套C02AL-7M4046+A BUSHING
10 凸轮轴前轴套C02AL-8N4110+A BUSHING
11 机体顶板7N7998 ROOF PLATE
12 机体顶板垫片(六缸)C02AL-7W7546+B SHIM
13 碗形闷头C02AL-4B5387+A PLUG
14 碗形闷头C04AL-3B0623+A PLUG
15 空心圆柱销C02AL-1S9540+A PIN
16 外六角螺塞U564C-8M9307+A PLUG
17 内方头锥管螺塞U561C-2B0858+A PLUG
18 内六角锥管螺塞U561B-7H3171+A PLUG
19 六角头锥管螺塞U562A-5M6214+A PLUG
20 六角锥管螺塞U562A-5M6213+A PLUG
21 平垫圈U382A-2S5658+A WASHER
22 双头螺栓U321A-5S8462+A STUD
23 钢球-GB/T308-9.525 BALL
24 铜垫圈U386A-6F7062+A WASHER
25 圆柱销U362A-8K1207+A PIN
26 圆柱销U362A-5B7652+A PIN
27 圆柱销U362A-8B6349+A PIN
28 O形密封圈U641A-3S5496+A O-RING
29 平垫圈U382A-5M2894+A WASHER
30 圆柱销U362A-2A3798+A PIN
31 盖板C02BL-8L8662+A COVER PLATE
32 垫片C02BL-5S8055+B GASKET
33 内六角沉头螺钉C02BL-8M3267 HEX. SOCKET SUNK SCREW
34 六角头螺栓U311A-0L1351+A SCREW
1 曲轴后油封4W0450 SEALING RING
2 曲轴前油封部件C02CB-9Y9895+A SEALING RING
1 气缸盖机加工部件C04AB-7N8866+A COVER
2 气缸盖C04AL-7C3906+A Cover
3 进气门座 C04AL-7N4448 A VALVE SUPPORT
4 排气门座 C04AL-7N8855 A VALVE SUPPORT
5 碗形闷头C04AL-3B0623+A PLUG
6 碗型闷头C04AL-3P1896+A PLUG
7 碗型闷头C04AL-3S8313+A PLUG
8 旋转弹簧座及挡油罩部件C04AB-1W5300+A SEAT
9 旋转弹簧座部件C04AB-8N7782+B SPRING SEAT
10 挡油罩C04AL-6N7174 A COVER
11 进气门C04AL-6N9915+A INLET VALVE
12 排气门C04AL-6N9916+B EXHAUST VALVE
13 气门导管C04AL-1487425+A VALVE GUIDE
14 气门弹簧C04AL-7S7144+A VALVE SPRING
15 气缸盖垫片C04AL-7E6167+A GASKET
16 气门锁夹C04AL-2A4429+D COLLET
17 封水圈C04AL-9Y1798+A SEALING RING
18 封水圈C04AL-7N8018+A SEALING RING
19 内方头锥管螺塞U561C-2B0858+A PLUG
20 六角锥管螺塞U562A-5M6213+A PLUG
21 O形密封圈U641A-3S5496+A O-RING
活塞05AL502 CYLINDER PISTON
2 第一道气环C05AL-1006694 PISTON RING
3 第二道气环C05AL-1006695 PISTON RING
4 油环C05AL－6I0499 PISTON RING
5 活塞销C05AL-7N9805+B PISTON PIN
6 锁簧C05AL-1S9543+A E-CIRCLIP
7 连杆机械加工部件C05AB-8N1721+A CONNECTING ROD
8 连杆8N1720 CONNECTING ROD
9 连杆螺栓1P9956(1/2-20*74.4) SCREW
10 连杆螺母5S6348(1/2-20) NUT
11 连杆衬套8N1849 BUSHING
12 连杆轴瓦C05AL-4W5739+A BEARING SHELL
1 曲轴C06AL-06AL102 CRANKSHAFT
2 主轴瓦C06AL-4W5738+A BEARING SHELL
3 曲轴齿轮C06AL-1W4405+B CRANKSHAFT
4 推力片C06AL-1003652 A THRUST WASHER
5 半园键9#C06AL-5H2671+A WOODRUFF KEY
6 内六角螺塞U561B-9F2247+A PLUG
1 曲轴皮带轮C06BL-7W5698+A PULLEY
2 皮带轮垫圈C06BL-5S9948+A WASHER
3 六角头螺栓C06BL-06BL004+A SCREW
1 飞轮与齿圈装配部件C06CB-06CB005A+A FLYWHEEL
2 飞轮7N9145(130齿) FLYWHEEL
3 起动齿圈7N9145(130齿) GEAR RING
4 六角头螺栓U311A-2L1701+A SCREW
1 减震器部件C06DB-1678123+A ABSORBER
2 接盘C06DL-9L6261+A DISC
3 六角头螺栓U311A-0S1587+A SCREW
4 平垫圈U382A-5P8245+A WASHER
1 螺栓GB5783-M10*45EpZn-8.8 BOLT
2 GB/T6170-M10-ZN.D:螺母B00000769 NUT
3 GB/T97.1-10-200HV-ZN.D:平垫圈B00001276 WASHER
4 支架焊接部件C08AB-M08AB009A+B BRACKET
5 六角头螺栓M10*35-12.9GB5782 01139338 SCREW
6 消声器焊接部件C08AB-08AB028+C MUFFLER
7 螺栓GB5782-M10*60EpZn-8.8 BOLT
8 消声器固定箍C08AL-M7N2450+A CLAMP
9 前支架焊接部件C08AB-08AB022+A MUFFLER
10 螺母GB6170-M12EpZn-10 NUT
11 垫圈B00001279 Washer
12 GB/T5782-M12*45-10.9-ZN.D:六角头螺栓B00000428 SCREW
1 凸轮轴C09AL-7E9980+A CAMSHAFT
2 推力片C09AL-7S2204+A EXTENSION BAR
3 止动垫片C09AL-8S1491+A EXTENSION BAR
4 六角头螺栓U311A-0S0509+A SCREW
1 压气机出气弯管C12AL-12AL028 PIPE
2 气缸盖进气弯管C12AL-12AL031+A PIPE
3 高温用软接管C12AL-9S9736+A HOSE
4 涡轮进气弯管C12AL-8N8196+A TUBE
5 垫片C04BL-5S6735+B SPACER
6 六角头锥管螺塞U562A-5M6214+A PLUG
7 喉箍-Q/SC1302-78~101 CLAMP
8 涡轮进口垫片C12AL-1S4295+A GASKET
9 六角头螺栓U311A-1A2029+A SCREW
10 六角头螺栓U311A-0S1591+A SCREW
11 垫片C12AL-1H7666+B SPACER
12 耐热螺栓C38AL-7L3195+A SCREW
13 锁紧螺母C13BL-2N2766+A NUT
1 排气歧管C13AL-9S2354+A EXHAUST MANIFOLD
2 排气管垫片C13AL-9Y1979 A GASKET
3 隔热板C13BL-1W7546 HEAT INSULATION
4 高温锥形锁紧螺栓C13BL-6V1426+A SCREW
5 高温锥形锁紧螺栓C13BL-6V1427+A SCREW
6 平垫圈U382A-2S6160+A WASHER
7 锁紧螺母C13BL-2N2766+A NUT
8 垫圈C13BL-1340641+A WASHER
9 隔圈C13BL-1M7643+B SPACER
10 平垫圈U382A-5M2894+A WASHER
11 隔圈C13BL-1B4971+B SPACER
