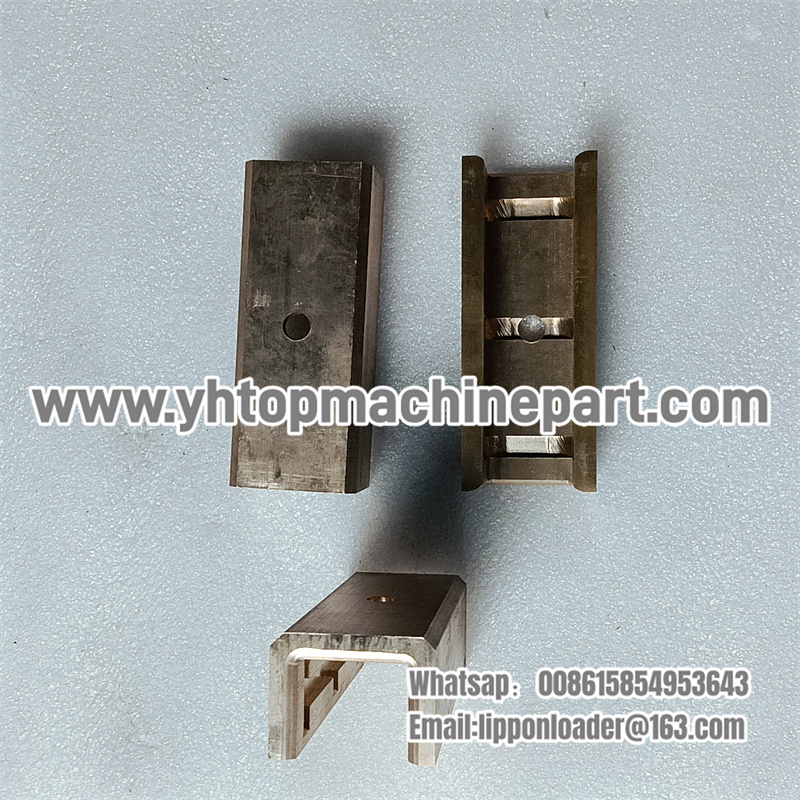

Copper Guide Channel Py180g. 10.1-3 001210007 381600371GR135.10.1-3 for Grader Gr180 Gr215A Gr135 Gr165

NO. PART NO. PART NAME QTY
1 ZL50G3-04001 Rear drive shaft assy. 1
2 ZL50G3-04002 Gearbox damper pad 2
3 ZL50G2-04200 Rear drive axle 1
4 ZL50G3-04004 Middle drive shaft assy. 1
5 ZL50G2-04100 Front drive axle 1
6 ZL50G2-04001 Double-screw bolt 4
7 ZL50G2-04008 Rim assy. 4
8 ZL50G3-04009 Front drive shaft assy. 1
9 ZL50G2-04010 Tyre assy. 4
-1 GB889 M30×2 Nut 16
-2 GB5785 M30×2×270 Bolt 16
-4 GB95 16 Flat washer 8
-5 GB6171 M16×1.5 Nut 36
-6 GB5785 M16×1.5×50 Bolt 16
-7 GB93 16 Spring washer 44
-8 GB5782 M18×1.5×140 Bolt 2
-9 GB889 M18×1.5 Nut 2
-10 GB5786 M16×1.5×35 Bolt 8
-11 GB5785 M16×1.5×45 Bolt 12
-12 GB93 20 Spring washer 2
-13 GB5783 M20×55 Bolt 2
-14 GB95 20 Washer 2
-15 UCP212 Bearing 1

1 ZL50G2-05029 管卡 Tube clip 4
2 ZL50G2-05013 转向器进回油接头 Oil in/out joint,steering device 2
3 ZL50G2-05014 至转向缸接头 To steering cylinder joint 2
4 ZL50G2-05015 空心螺栓 Hollow bolt 4
5 ZL50G2-05016 空心螺栓 Hollow bolt 1
6 ZL50G2-05021 软管总成19-1515 Hose assembly 1
7 ZL50G2-05022 软管总成19-1495 Hose assembly 1
(1) GB93 10 弹垫10 Spring washer 2
(2) GB6170 M10 螺母M10 Nut 2
(3) GB5783 M10×40 螺栓M10×40 Bolt 2
(4) JB982 20 组合垫圈20 Combined washer 8
(5) JB982 12 组合垫圈12 Combined washer 2
(6) BZZ-1000 转向器总成 Steering device assy. 1
(7) FK-/21 组合阀块 Combined valve block 2
(8) JH100 19Ⅰ-1250 软管总成19Ⅰ-1250 Hose assy. 1
(9) JH100 19Ⅰ-3330 软管总成(Sl50W-3用)19Ⅰ-3330 Hose assy.(for SL50W-3) 1

0 4WY315A Hydraulic torque converter 1
1 4WY335-002 Guide wheel base 1
2 4WY315-009 Seal ring 1
3 4WY315-035 Seal ring 1
4 4WY315-007 Shell 1
5 GB5783 M8×20 Bolt 8
6 4WY315-015 Cover plate 1
7 4WY315-016 Paper gasket 1
8 4WY315A-011 Gear 1
9 GB276 6017 Ball bearing 2
10 GB5783 M8×40 Bolt 24
11 GBT93 8 Spring washer 24
12 4WY315A-014 Pump wheel 1
13 GB93 8 Spring washer 24
14 GB6170 M8 Nut 24
15 4WY315-012 Press plate 1
16 4WY315-013 Gasket 7
17 4WY315A-008 Guide wheel 1
18 GB879.1 8×24 Cylinder pin 2
19 GB5783 M8×30 Bolt 14
20 4WY335-001 Gasket 4
21 GB5783 M8×30 Bolt 6
22 4WY335-203 Pin 9
23 NSK 6210 Bearing 1
24 NSK 6013 Bearing 1
25 4WY335-010 O-ring 1
26 4WY335-015/16/17/18 Round gasket 1
27 GBT93 12 Spring washer 6
28 GB5783 M12×30 Bolt 6
29 4WY315-001 Gasket 6
30 4WY315-002 Spring plate 2
31 4WY335-004A Hood plate 1
32 4WY315A-202 First-lever turbo hood 1
33 GB869 8×16 Rivet 12
34 4WY335-101 Second-level turbo base 1
35 4WY315A-102 Second-level turbo 1
36 4WY315A-204 First-level turbo 1
37 402111X13 Joint 1
38 4WY315-023 Gasket 1
39 4WY315-027 Spring 1
40 4WY315-025 Valve rod 2
41 4WY315-028 Base plate 1
42 4WY315-036 Valve body 1
43 4WY315-024 Spring 1
44 4WY315-026 Valve cover 1
47 GB5783 M10×30 Bolt 8
48 GB93 10 Spring washer 8
