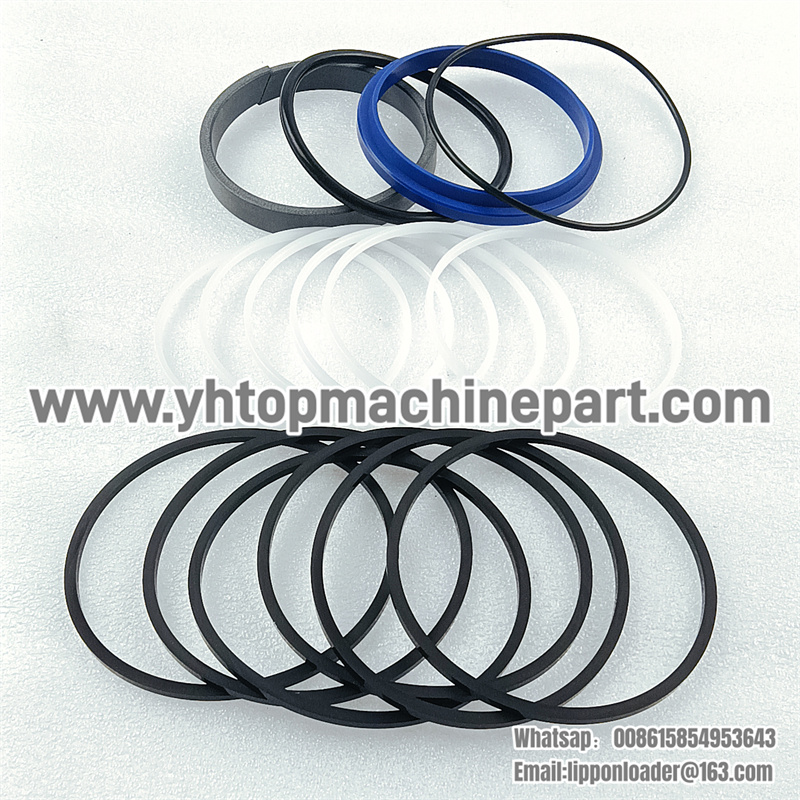

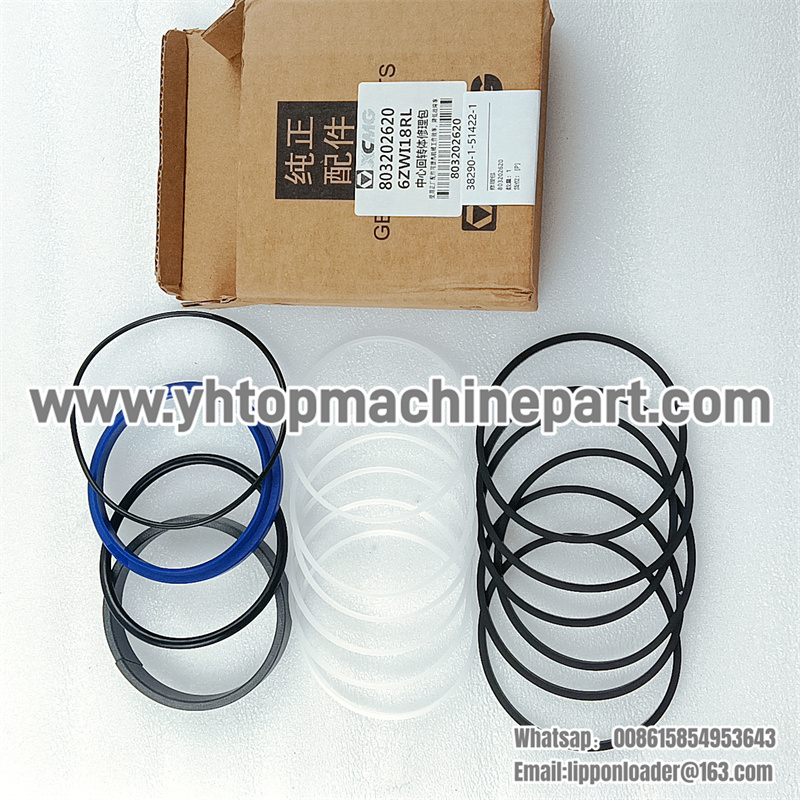

Center Swing Repair Kit 800305381 803202620 for XCMG XE215C Excavator

042 380900194后松土器 RearRipper- XCMG Motor Grader GR215D Parts Catalog
NO. PartNumber PartName AdvisedQ’ty Remarks
1 380901112 耙杆 RAKEROD 5
2 380901118 耙齿 RAKETOOTH 5
3 805601794 弹性圆柱销 16×75 ELASTICROUNDPIN 10
4 380901116 弹性销 ELASTICPIN 10
5 380901115 插销 PIN 10
6 380901111 松土器架 RIPPERFRAME 1
7 380900729 后松土器举升油缸 REARSCARIFIERHOIST CYLINDER 1
8 805604523 销轴Ⅱ PIN 1
9 805203848 锁紧螺母 12 NUT 3
10 805203848 垫圈 12 WASHER 3
11 805046649 螺栓 M12×100 BOLT 1
12 380901114 铜套Ⅱ COPPERSHEATHING 2
13 380901117 盖 COVER 2
14 801103215 油杯 M10×1 OILCUP 4
15 805338259 垫圈 8 WASHER 9

16 805046507 螺栓 M8×20 BOLT 8

17 381600199 销轴Ⅰ PIN 2

18 380901113 铜套Ⅰ COPPERSHEATHING 4

19 805046463 螺栓 M12×120 BOLT 2

20 380901110 座架 SEATFRAME((L.H.) 1

21 805046894 螺栓 M20×45 BOLT 6
22 805046475 垫圈 20 WASHER 6

23 805046476 螺母 M16 NUT 11

24 805338263 垫圈 16 WASHER 10

25 805046851 螺栓 M16×70 BOLT 4

26 805046668 螺栓 M16×120 BOLT 6

27 380901040 橡胶套Ⅱ RUBBERCOVER 1

28 380901133 吊环 HOISTINGEYE 1

29 803190682 直通接头 JOINT 2

30 803191118 胶管总成 HOSEASSEMBLY 2

31 803045151 平衡阀 BALANCEVALVE 1

32 805046516 螺栓 M8×50 BOLT 4

33 805338259 垫圈 8 WASHER 12

34 380901132 深度指示杆 DEPTHINDICATORBAR 1

35 805140915 螺钉 M8×30 BOLT 1

36 800515282 杆端关节轴承 SI10EM10 JOINTBEARING 2

37 805238366 螺母 M10 NUT 1

043 380902137破冰装置 Ice-BrokenDevice- XCMG Motor Grader GR215D Parts Catalog
NO. PartNumber PartName AdvisedQ’ty Remarks

1 380902585 轮子焊接 ICE-BROKENWHEEL 1

2 380902624 机架 FRAME 1

3 380902621 连接架 SUPPORT 2

4 380902609 减振块 DAMPINGBLOCK 16

5 380902610 安装板 PLATE 2

6 380902592 轴承盖 BEARINGCOVER 1

7 380902593 轴承压板 BEARINGGLAND 2

8 800511397 框架轴承 FRAMEBEARING 2

9 380902596 框架轴承座 BEARINGSEAT 2

10 380902611 外轴承座 OUTERBEARING HOUSING 2

11 805801516 轴承 22312 BEARING 4

12 380902597 左偏心轴 LEFTECCENTRICSHAFT 1

13 380902606 内轴承座 INNERBEARINGHOUSING 2

14 380902604 连接轴 CONNECTINGAXLE 1

15 380902605 橡胶套 RUBBERCOVER 2

16 380902612 右偏心轴 RIGHTECCENTRIC SHAFT 1

17 801138059 骨架油封 FB160×190 OILSEAL 2

18 380902607 马达连接盘 MOTORCOUPLING FLANGE 1

19 380902608 花键套 SPLINEHOUSING 1

20 380902642 调整垫 SHIM 4

21 801103215 油杯 M10×1 OILCUP 2
22 805338260 垫圈 10 WASHER 16

23 805046473 螺栓 M10×30 BLOT 16

24 805046507 螺栓 M8×20 BOLT 12

25 805338259 垫圈 8 WASHER 12

26 380700421 挡板 PLATE 1

27 380902638 销轴 PINSHAFT 8

28 805338288 垫圈 20 WASHER 20

29 380700413 连杆架 CONNECTINGROD BRACKET 1

30 380902632 前面板 PANEL 1

31 805238375 螺母 M20 NUT 20

32 805338321 垫圈 20 WASHER 20

33 410206200 螺栓 M20×130 BOLT 8

34 380700422 销轴 PINSHAFT 1

35 380700416 连杆 LINKROD 2

36 805048239 螺栓 M20×80 BOLT 12

37 801100682 O型圈 103×3.55 ORING 1

38 803192513 O型圈 160×3.55 ORING 2

39 803269136 O型圈 307×5.3 ORING 2

40 805300044 垫圈 18 WASHER 2

41 803107804 螺塞 M18×1.5 PLUGSCREW 2

42 805338390 垫圈 30 WASHER 4
43 380902615 视油螺塞 PLUGSCREWTOOBSERVE OILLEVEL 2

44 380902594 油塞 OILPLUG 2

45 239900739 透气塞 M12 VENTILATEPLUG 1

46 805801430 碟垫 12 PRESSUREDISK 72

47 805046645 螺栓 M12×80 BOLT 4

48 805047089 螺栓 M16×60 BOLT 16

49 805201500 锁紧螺母 M16 CHECKNUT 16

50 805338263 垫圈 16 WASHER 16

51 805046573 螺栓 M16×40 BOLT 16

52 805338284 垫圈 16 WASHER 32

53 805046577 螺栓 M16×50 BOLT 16

54 805046548 螺栓 M12×40 BOLT 64

55 805203848 锁紧螺母 M12 CHECKNUT 64

56 380902635 销 PIN 1

57 380902641 隔套 SPACER 8
044 380902631破冰管路 HydraulicSystemofIce-BrokenDevice- XCMG Motor Grader GR215D Parts Catalog
NO. PartNumber PartName AdvisedQ’ty Remarks

1 803269137 直通接头 JOINT 2
2 803191566 胶管总成 HOSEASS’Y 2
3 803164300 直通接头 JOINT 1
4 803269121 胶管总成 HOSEASS’Y 1
5 803004152 振动马达 OSCILLATIONMOTOR 1
6 805046564 螺栓 M14×35 BLOT 2
7 805338262 垫圈 14 WASHER 2
8 805338282 垫圈 14 WASHER 2
9 803072267 提升油缸 LIFTOILCYLINDER 1
10 803190682 直通接头 JOINT 3
11 803303573 胶管总成 HOSEASS’Y 2
12 803072263 提升阀组 LIFTINGVALVEGROUP 1
13 805140915 螺钉 M8×30 SCREW 4
14 805338259 垫圈 8 WASHER 4
15 803072264 多路换向阀 VALVEASS’Y 1
16 803190718 直通接头 JOINT 4
17 803190692 直角组合接头 RIGHTANGLEUNION JOINT 1

045 380902669除雪装置 HydraulicSystemofIce-BrokenDevice- XCMG Motor Grader GR215D Parts Catalog
NO. PartNumber PartName AdvisedQ’ty Remarks

1 805238375 螺母 M20 NUT 10

2 805338321 垫圈 20 WASHER 10

3 380902666 支座 SEAT 1

4 380601451 销轴总成 PINASSEMBLY 8

5 805048320 螺栓 M20×110 BOLT 10

6 805338261 垫圈 12 WASHER 8

7 805338280 垫圈 12 WASHER 10

8 805046548 螺栓 M12×40 BOLT 8

9 803045152 平衡阀 BALANCEVALVE 1

10 805046516 螺栓 M8×50 BOLT 3

11 805338259 垫圈 8 WASHER 3

12 803068560 提升油缸 LIFTOILCYLINDER 1

13 803190779 直通接头 JOINT 2

14 803191112 胶管总成 HOSEASSEMBLY 2

15 801103215 油杯 M10×1 OILCUP 8

16 380601450 套 SLEEVE 8

17 380601417 连杆 LINKROD 2

18 805046649 螺栓 M12×100 BOLT 2

19 380601454 销轴 PINSHAFT 2

20 380601422 除雪铲 SNOW-SWEEPINGBLADE 1

21 805238367 螺母 M12 NUT 2

22 805046476 螺母 M16 NUT 22

23 805338263 垫圈 16 WASHER 22

24 805046577 螺栓 M16×50 BOLT 22

25 380601449 左刀片 BLADE(L.H.) 1

26 380601448 右刀片 BLADE(R.H.) 1

27 380601418 连杆 LINKROD 1

28 803190682 直通接头 JOINT 1

29 803191811 铰接式组合接头 ARTICULATEDUNION JOINT 1

30 805338288 垫圈 20 WASHER 1
