Description

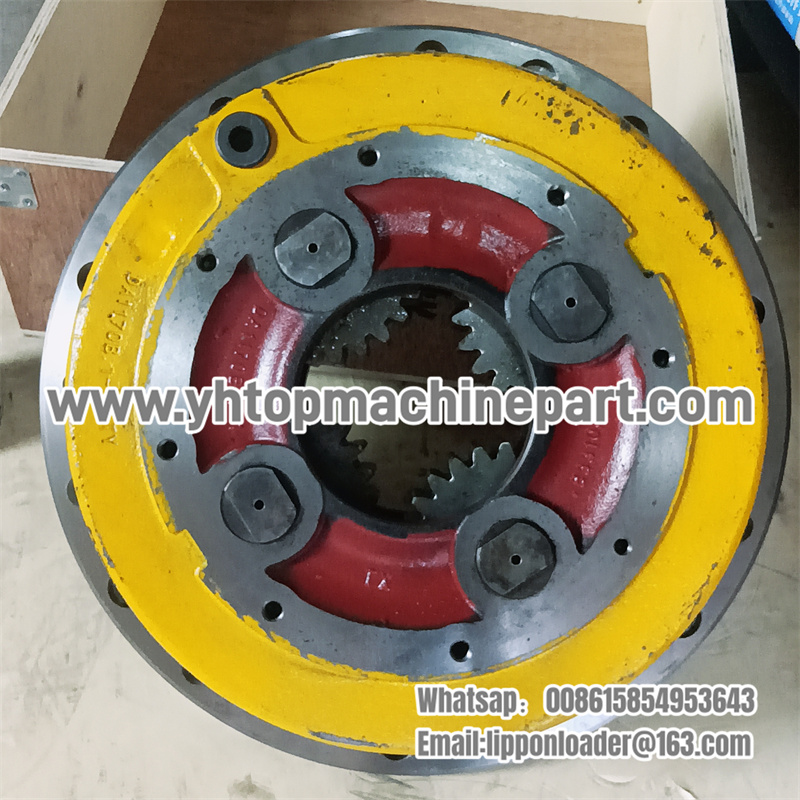

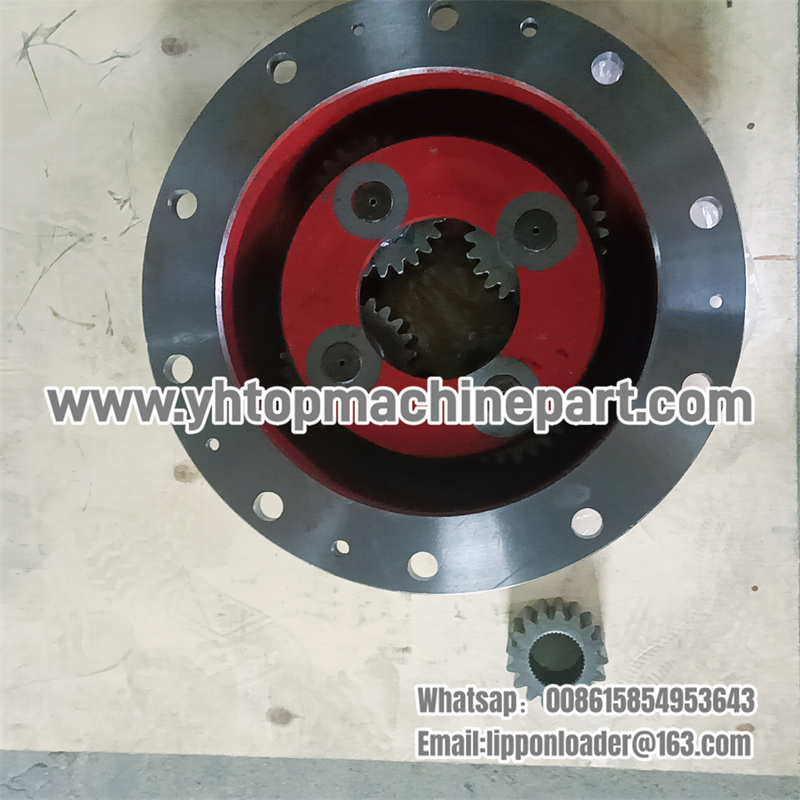

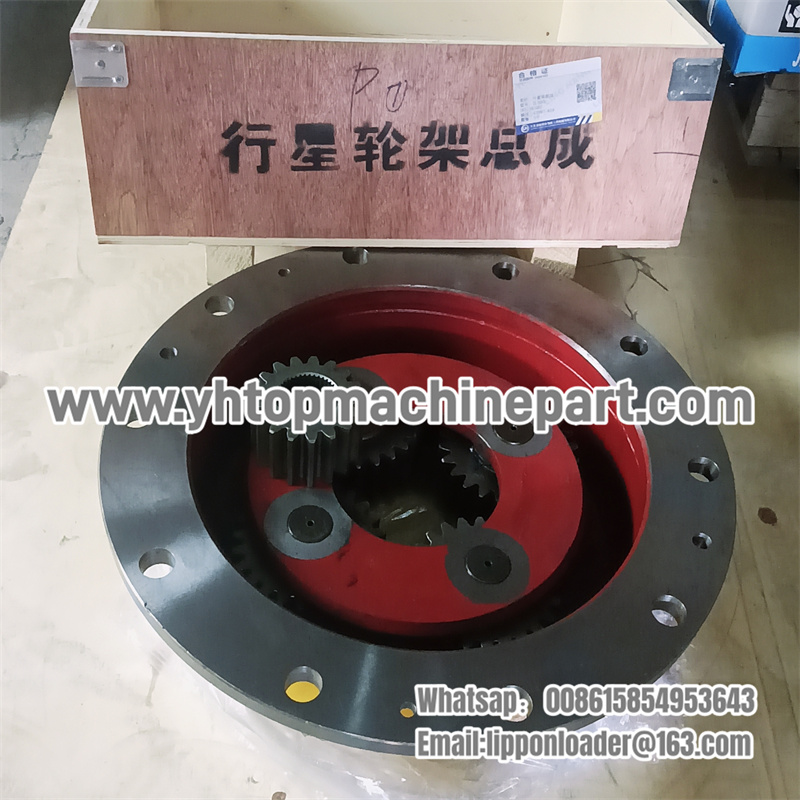

83228300 77001142 860115614 Planet carrier assy XCMG ZL50G LW500 Loader

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 GB5782 M12 ×40 螺栓M12 ×40 Bolt 4
2 403302X7 锁片 Locking plate 2
3 403303X7 压板 Press plate 2
4 403301X9C 法兰 Flange 1
5 403315 O型圈 “O ” ring 2
6 403316 油封座 Oil seal seat 2
7 GB13871.1 骨架油封 Frame oil seal 4
FB70 ×95 × 12 FB70 ×95 × 12
8 GB893.1 130 孔用挡圈130 Circlip for hole 2
9 GB3452.1 125 ×2.65 O型圈125 ×2.65 “O ” ring 4
10 GB893.1 130 孔用弹性挡圈-A型130 Circlip for hole 2
11 GB276 6312 深沟球轴承 6312 Ball bearing 3
12 403310X3 滑套 Slide bushing 1
13 403311 输出齿轮 Output gear 1
14 403309 ×7 输出轴 Output shaft 1
15 403305A 隔套 Distance sleeve 1
16 409109 ×9C 法兰 Flange 1
020 变速箱齿轮泵(杭州前进)
FIG.17 GEARBOX GEAR PUMP(HANGZHOU ADVANCE)

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 GB893.1 65 挡圈 65 Collar 1
2 403604 挡环 Baffle ring 1
3 JB2600 45 ×62 × 12 骨架油封45×62 × 12 Frame oil seal 1
4 GB6170 M12 螺母 M12 Nut 4
5 GB93 12 弹簧垫圈 12 Washer 4
6 GB897 AM12 ×35 双头螺柱AM12X35 Double-screw bolt 4
7 403601 泵体 Pump block 1
8 402106 垫圈 Washer 1
9 402111 变速箱接头 Gearbox joint 1
10 403611 轴 Shaft 1
11 403611 隔离套 Distance sleeve 2
12 GB309 4 ×30 滚针 4 ×30 Roller pin 18
13 403602 小齿轮 Pinion 1
14 403609 密封垫 Gasket 1
15 403608 泵盖 Pump cover 1
16 403606 密封垫 Gasket 1
17 GB5782 M10 ×75 螺栓 M10X75 Bolt 1
18 GB5782 M10 ×50 螺栓 M10 ×50 Bolt 6
19 GB93 10 弹簧垫圈10 Washer 8
20 GB119.1 AM10 ×30 销 A10 ×30 Pin 2
21 403605 大齿轮 Bull gear 1
021 变速箱油底壳(杭州前进)
FIG.18 GEARBOX OIL SUMP TANK(HANGZHOU ADVANCE)

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 403406 密封垫 Gasket 2
2 403403-404 滤网支架 Filter screen bracket 1
3 403408 永久磁铁 Permanent magnet 2
4 403405 垫板 Backing plate 2
5 GB93 6 弹簧垫圈6 Washer 4
6 GB5783 M6 ×25 螺栓M6×25 Bolt 4
7 403401-402-014 油底壳体 Oil sump tank body 1
8 Q21-15A-02 放油螺塞M22 × 1.5 Drain plug 1
022 变速箱总成1(370801)
FIG.19 GEARBOX ASSEMBLY 1

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 GB276 6210NR 轴承6210NR Bearing 1
2 BD15-00011A 转向油泵轴齿轮 Gear 1
BD15-00012B 转向油泵轴齿轮 Gear 1
3 GB276 6211 轴承6211 Bearing 1
4 BD15-00013A 轴承座 Bearing base 1
5 BD15-00010 密封垫 Gasket 1
6 BD15-00005A 箱体 Housing 1
7 04530-12035 吊环螺钉M20 Screw 2
8 BD15-07000 呼吸器总成 Breather assembly 1
9 YB315Z5-15 螺塞 Plug 1
10 BD15-00017 圆柱堵塞 Pin 1
11 YB315Z5-14S 管接头 Pipe connector 4
12 YB315Z5-09 组合垫圈 Combined washer 4
13 BD15-11000 变速泵 Transmission pump 1
14 01602-11030 垫圈10 Washer 61
15 01010-81055 螺栓M10 ×55 Bolt 6
16 01010-81070 螺栓M10 ×70 Bolt 20
17 BD15-00007 密封垫 Gasket 1
18 BD15-00018 密封垫 Gasket 1
19 BD15-09000 变速操纵阀 Transmission control valve 1
20 BD15-00019 圆柱销 Pin 1
21 01010-81840 螺栓M18 ×40 Bolt 8
22 01602-11854 垫圈18 Washer 8
23 BD15-10000 支座 Support 2
24 04418-03060 铆钉 Rivet 4
25 BD15-00025A 铭牌 Nameplate 1
26 1305C-010 检油塞R1/4 Oil Plug 1
27 BD15-06004 密封垫 Gasket 2
28 BD15-06100 滤网组件 Filter module 1
29 BD15-06200 外壳组件 Crust module 1
30 01010-81030 螺栓M10 ×30 Bolt 40
31 GB276 6012 轴承6012 Bearing 1
32 BD15-00006A 轴齿轮 Shaft gear 1
33 GB276 6210NR 轴承6210NR Bearing 1
023 变速箱总成2(370801)
FIG.20 GEARBOX ASSEMBLY 2

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 BD15-01003 旋转油封 Seal 1
2 GB276 6016 轴承6016 Bearing 1
3 BD15-01001A 输入一级齿轮 Gear 1
4 GB301 51111 单向推力球轴承51111 Bearing 1
5 BD15-01004 旋转油封 Seal 1
6 BD15-01002A 输入二级齿轮 Gear 1
7 BD15-01005 调整垫(选配) Adjusting gasket(optional) 1
BD15-01006 调整垫(选配) Adjusting gasket (optional) 1
BD15-01007 调整垫(选配) Adjusting gasket (optional) 1
8 GB276 6311 轴承 6311 Bearing 1
9 BD15-05011 一档密封环 Seal 1
10 BD15-05001 外密封环 Seal 2
11 BD15-05008 一档活塞体 Piston 1
12 BD15-05013 一档油缸体 Cylinder body 1
13 07000-72016 O形圈16 ×2.4 O-ring 1
14 BD15-05010 中盖 Cover 1
15 01010-81440 螺栓M14 ×40 Bolt 8
16 01602-11442 垫圈14 Washer 8
17 BD15-05007 倒档一档从动片 Passive disc 8
18 BD15-05200 倒档一档主动片 Driving disc 8
19 BD15-05012 一档内齿圈 Ring gear 1
20 BD15-05006 摩擦片隔离架 Bracket 1
21 BD15-05005 弹簧销轴 Pin roll 15
22 04065-09030 孔用挡圈90 Circlip 1
23 BD15-05003 倒档密封环 Seal ring 1
24 BD15-05002 倒档活塞体 Piston 1
25 BD15-05014 固定板 Plate 1
26 BD15-05015 固定销 Pin 8
27 BD15-05004 弹簧 Spring 15
28 BD15-05306 止动盘 Stop pan 1
29 BD15-05307 直接挡连接盘 Connect pan 1
30 GB276 6210N 轴承6210N Bearing 1
31 BD15-05105 行星轮 Planet 8
32 BD15-05102 垫圈 Washer 16
33 BD15-08104 隔离套 Sleeve 16
34 BD15-05305 一档行星轴 Shaft 4
35 GB309 4 ×35 滚针4×35 Needle 176
36 BD15-05303 一档行星架 Planetary carrier 1
37 BD15-05301 太阳轮 Sun gear 1
38 BD15-05304 挡圈 Snap ring 1
39 BD15-05302 倒档内齿圈 Ring gear 1
40 BD15-05101 倒档行星架 Planetary carrier 1
41 BD15-05103 倒档行星轴 Planetary Shaft 4
42 GB276 6010 轴承6010 Bearing 1
43 BD15-05106 止垫推圈 Shims 4
44 01602-11236 垫圈12 Washer 4
45 GB5785 M12 × 1.25 ×30 螺栓 M12 × 1.25 ×30 Bolt 4
46 BD15-00001 调整垫(选配) Adjusting gasket(optional) 1组
47 BD15-02000 离合器总成 Clutch assembly 1
48 BD15-00002/3/4 调整垫(选配) Adjusting gasket (optional) 1
024 变速箱总成3（370801） FIG.21 GEARBOX ASSEMBLY 3

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 01016-81030 螺栓M10 ×30 Bolt 8
2 01602-11030 垫圈10 Washer 8
3 BD15-00009 端盖 Cover 1
4 07042-00211 螺塞 Plug screw 1
5 07000-72020 O形圈20 ×2.4 O-ring 1
6 BD15-00008 密封垫 Gasket 1
7 BD15-00014/15/16 调整垫(选配) Adjusting gasket(optional) 1
8 GB5785 M12 × 1.25 × 100 螺栓 M12 × 1.25 × 100 Bolt 12
9 GB276 6411 轴承6411 Bearing 1
10 04020-01030 销 Pin 2
11 BD15-01004 旋转油封 Seal 1
12 BD15-03004 锁片 Lock shim 6
13 BD15-03008 直接档油缸体 Cylinder body 1
14 BD15-03009A 中间轴输出齿轮 Mid-shaft output gear 1
15 BD15-03006 直接档活塞 Piston 1
16 BD15-01003 旋转油封70×78 ×5 Seal 1
17 BD15-03005 盘型弹簧 Spring 1
18 04064-06525 挡圈65 Circlip 1
19 BD15-03011 Ⅱ档内齿圈 Ring gear 1
20 01602-11030 垫圈10 Washer 14
21 01010-81020 螺栓M10 ×20 Bolt 12
22 BD15-03100 直接档主动片 Driving disc 2
23 GB276 6204 轴承6204 Bearing 1
24 BD15-03003 Ⅱ档从动片 Passive disc 1
25 BD15-03010 圆柱销 Pin 1
26 BD15-03002 直接档受压盘 Pressing pan 1
27 GB276 6022 轴承6022 Bearing 1
28 BD15-03007 密封环 Seal 1
29 BD15-03001 直接档轴 Shaft 1
30 GB5785 M12 × 1.5 ×30 螺栓 M12 × 1.5 ×30 Bolt 8
31 01602-11236 垫圈12 Washer 8
32 BD15-12000 制动器总成 Brake assembly 1
33 01010-81035 螺栓M10 ×35 Nut 2
34 BD15-00024 制动器连杆 Brake joint 1
35 01580-01008 螺母M10 Nut 2
36 BD15-04009 前输出法兰 Flange 1
37 BD15-04001 锁紧螺母 Lock nut 2
38 BD15-04010 压板 Press plate 1
39 BD15-04008 防护罩 Security cover 1
40 BD15-04003 油封座 Seal base 2
41 07000-05120 O形圈130 ×5.7 O-ring 4
42 GB893.1 130 ×3 孔用挡圈130×3 Circlip 2
43 07012-00070 骨架油封70×95 × 12 Seal 4
44 GB276 6312 轴承6312 Bearing 2
45 BD15-04007 轴套 Shaft sleeve 1
46 BD15-04004 输出轴 Output shaft 1
47 GB3452.3 42.5 ×5.3 O形圈42.5 ×5.3 O-ring 1
48 BD15-04006A 输出齿轮 Output gear 1
49 BD15-04005 隔套 Separate cover 1
50 GB276 6410 轴承6410 Bearing 1
51 BD15-04002 后输出法兰 Flange 1
025 4WG180变速箱箱体部件
