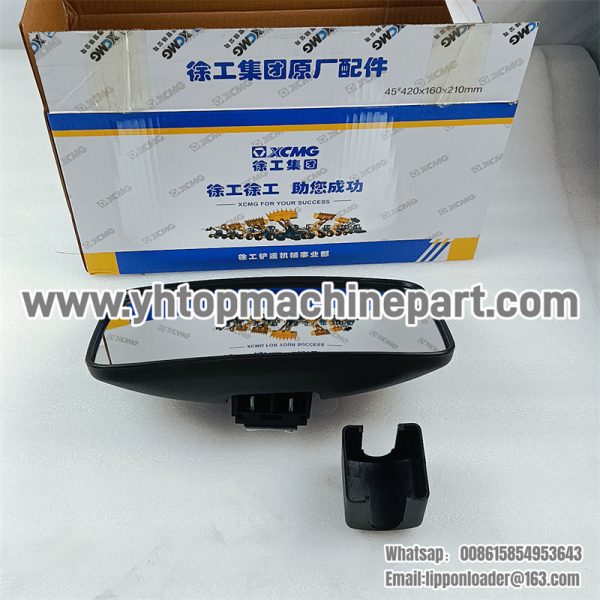

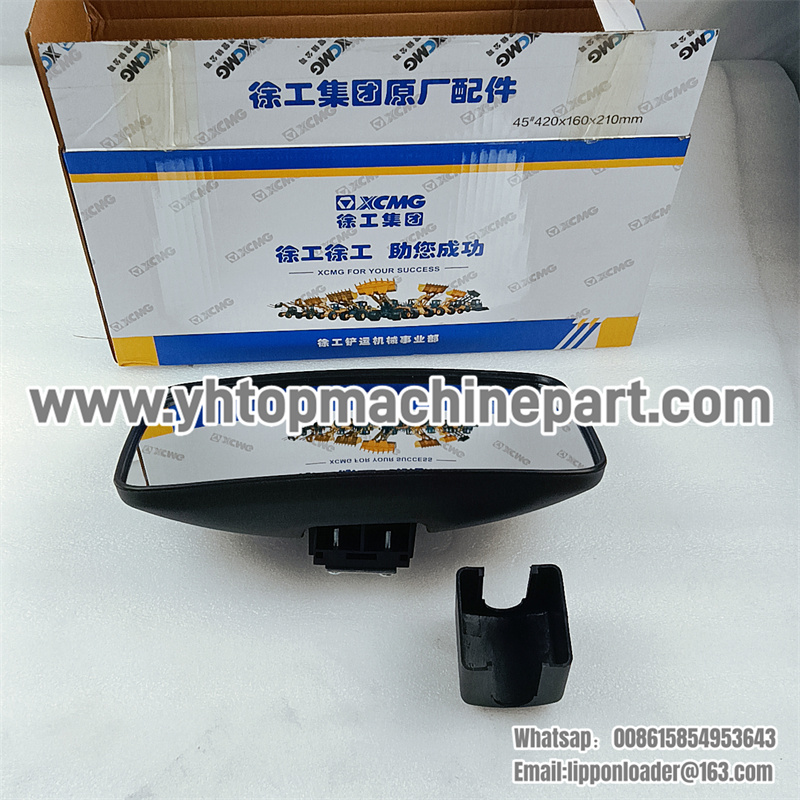

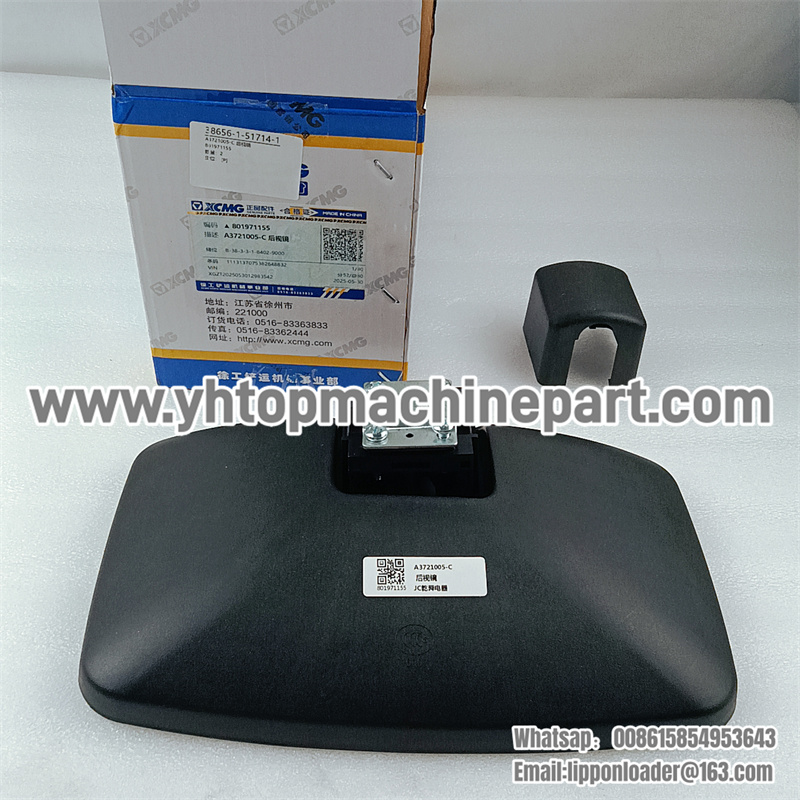

801971155 Rearview Mirror XC750K Mini Skid Steer Loader

038 380900707右铰接转向油缸 RightArticulatedSteeringCylinder- XCMG Motor Grader GR215D Parts Catalog

NO. PartNumber PartName AdvisedQ’ty Remarks
1 801103157 油杯 M10×1 OILCUP 2
2 381600479 防尘圈 50×58.6×5.3 DUSTRING 1
3 803175028 O型圈 95×3.1 ORING 1
4 803192270 U形圈 50×65×10 URING 1
5 803268677 导向套 GUIDESLEEVE 1
6 860107851 O型圈 90×5.7 ORING 1
7 803268673 挡圈 A90×81×2 RETAINER 1
8 803192272 斯特封 STEPSEAL 1
9 803268672 导向环 RING 2
10 803268679 缸体 CYLINDERBODY 1
11 803268680 活塞杆 ROD 1
12 803107849 O型圈 35×3.1 ORING 1
13 803268667 支承环 SUPPORTRING 2
14 803192271 格莱圈 GLYDRING 1
15 803268669 活塞 PISTON 1
16 803268668 卡键 CLIPKEY 1
17 803268663 卡键帽 CLIPKEYCAP 1
18 805400046 弹性挡圈 35 ELASTICRETAINER 1
19 800515281 关节轴承 GE50ES JOINTBEARING 2
20 805400042 弹性挡圈 75 ELASTICRETAINER 1

039 380900709左铰接转向油缸 LeftArticulatedSteeringCylinder- XCMG Motor Grader GR215D Parts Catalog
NO. PartNumber PartName AdvisedQ’ty Remarks
1 801103157 油杯 M10×1 OILCUP 2
2 381600479 防尘圈 50×58.6×5.3 DUSTRING 1
3 803175028 O型圈 95×3.1 ORING 1
4 803192270 U形圈 50×65×10 URING 1
5 803268674 导向套 SLEEVE,GUIDE 1
6 860107851 O型圈 90×5.7 ORING 1
7 803268673 挡圈 A90×81×2 RETAINER 1
8 803192272 斯特封 STEPSEAL 1
9 803268672 导向环 RING 2
10 803268679 缸体 CYLINDERBODY 1
11 803268680 活塞杆 ROD 1
12 803107849 O型圈 35×3.1 ORING 1
13 803268667 支承环 SUPPORTRING 2
14 803192271 格莱圈 GLYDRING 1
15 803268669 活塞 PISTON 1
16 803268668 卡键 CLIPKEY 1
17 803268663 卡键帽 CLIPKEYCAP 1
18 805400046 弹性挡圈 35 ELASTICRETAINER 1
19 800515281 关节轴承 GE50ES JOINTBEARING 2
20 805400042 弹性挡圈 75 ELASTICRETAINER 1

040 803010956插销油缸 BoltCylinder- XCMG Motor Grader GR215D Parts Catalog
NO. PartNumber PartName AdvisedQ’ty Remarks
1 803268700 杆头 LEVEREND 1
2 381600480 防尘圈 32×40×5 DUSTRING 1
3 803192275 U形圈 32×42×7.3/8 URING 1
4 803268701 导向套 GUIDESLEEVE 1
5 803268702 支撑环 SUPPORTRING 2
6 803196524 斯特封 32×42.7×4.2 STEPSEAL 1
7 803192099 O形圈 50×3.1 ORING 1
8 803268703 挡圈 A50×45.2×1.53 RETAINER 1
9 803268704 缸体 CYLINDERBODY 1
10 803268705 活塞杆 ROD 1
11 860107793 O形圈 37×3.1 ORING 1
12 803268706 支撑环 SUPPORTRING 2
13 803192276 格来圈 50×39×4.2 GLYDRING 1
14 803268707 活塞 PISTON 1
15 805100312 螺钉 M6×8 SCREW 1
16 800511242 钢球Φ4 STEELBALL 1
17 803100725 接头 NIPPLE 1
18 805300026 垫圈 16 WASHER 1
