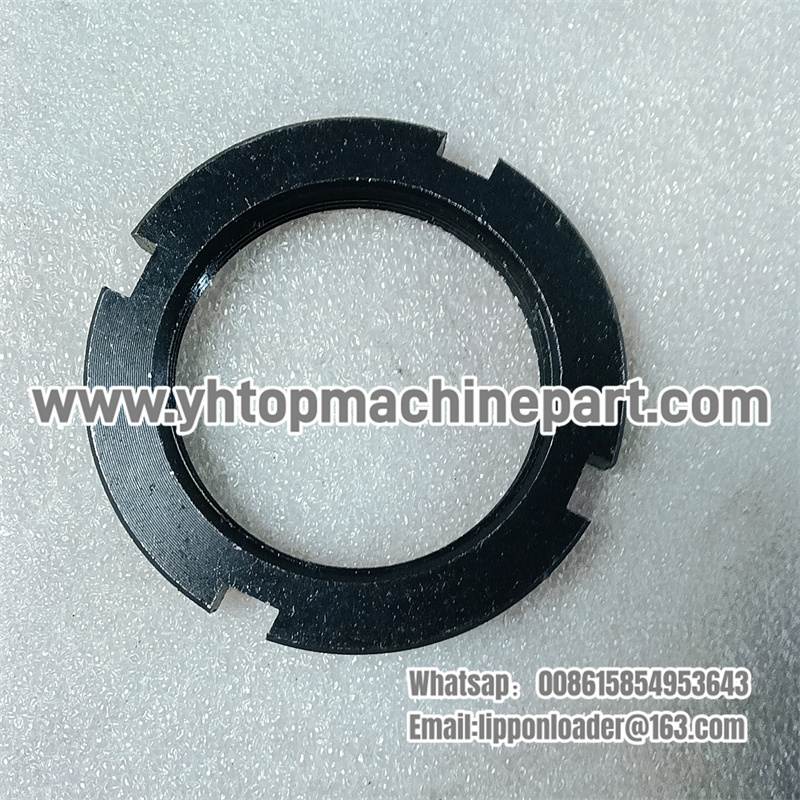

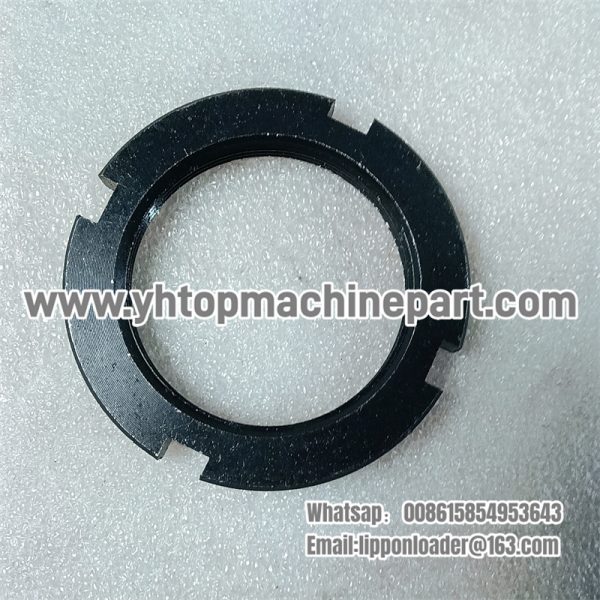

7200000979 AXLE TUBELOCK NUT SDLG LG918 Loader

KEY PART NO. DESCRIPTION QTY REMARKS
1 4011000184 螺栓 GB5783-M10*40EpZn-8.8 BOLT GB5783-M10*40EpZn-8.8 6
2 4015000025 垫圈 GB93-10-65Mn WASHER GB93-10-65Mn 6
3 2906000652 左固定架 LEFT SET FRAME 1 部件
4 2906000653 右固定架 RIGHT SET FRAME 1 部件
5 4013000007 螺母 GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 2
6 2906000654 支架 BRACKET 1 Q235A
7 2906000655 档位操纵机构 CONTROL CABLE ASS’Y 1 部件

1 2880902463 后桥总成 REAR AXLE ASS’Y 1
2 2905000654 螺栓 BOLT 16
3 2908000653 后传动轴 REAR MOTION SHAFT 1
4 2908000103 螺栓 BOLT 4
5 2908000756 止动垫圈 LOCKING LEFT 2
6 2905000653 主传动轴 MOTION SHAFT 1
7 4013000072 螺母 GB889.2-M12*1.25EpZn-10 NUT GB889.2-M12*1.25EpZn-10 18
8 4011000501 螺栓 GB5785-M12*1.25*45EpZn-8.8 BOLT 2
9 4015000168 垫圈 GB97.1-12EpZn-300HV WASHRE GB97.1-12EpZn-300HV 2
10 2908000652 前传动轴 FRONT MOTION SHAFT 1
11 2880902856 前桥总成 FRONT AXLE ASS’Y 1
12 4190000119 轮辋 LY13-20.916.0A WHEEL FELLONELY13-20.916.0A 4
13 2050900108 轮胎 TIRE 4
14 4011000566 螺栓 GB5785-M20*1.5*70EpZn-8.8 BOLT GB5785-M20*1.5*70EpZn-8.8 16
15 4015000030 垫圈 GB93-20-65Mn WASHER GB93-20-65Mn 16
16 4013000160 螺母 GB889.2-M20*1.5EpZn-8 NUT GB889.2-M20*1.5EpZn-8 16

1 2880902463 后桥总成 REAR AXLE ASS’Y 1
2 2905000654 螺栓 BOLT 16
3 2908000653 后传动轴 REAR MOTION SHAFT 1
4 2908000103 螺栓 BOLT 4
5 2908000756 止动垫圈 LOCKING LEFT 2
6 2905000653 主传动轴 MOTION SHAFT 1
7 4013000072 螺母 GB889.2-M12*1.25EpZn-10 NUT GB889.2-M12*1.25EpZn-10 18
8 4011000501 螺栓 GB5785-M12*1.25*45EpZn-8.8 BOLT 2
9 4015000168 垫圈 GB97.1-12EpZn-300HV WASHRE GB97.1-12EpZn-300HV 2
10 2908000652 前传动轴 FRONT MOTION SHAFT 1
11 2880902856 前桥总成 FRONT AXLE ASS’Y 1
12 4190000119 轮辋 LY13-20.916.0A WHEEL FELLONELY13-20.916.0A 4
13 2050900108 轮胎 TIRE 4
14 4011000566 螺栓 GB5785-M20*1.5*70EpZn-8.8 BOLT GB5785-M20*1.5*70EpZn-8.8 16
15 4015000030 垫圈 GB93-20-65Mn WASHER GB93-20-65Mn 16
16 4013000160 螺母 GB889.2-M20*1.5EpZn-8 NUT GB889.2-M20*1.5EpZn-8 16

1 7200000193 桥壳总成 AXLE HOUSING ASS’Y 1
2 7200000977 制动盘 BRAKER DISC 2
3 4015000026 垫圈 GB93-12-65Mn WASHER GB93-12-65Mn 32
4 7200000225 螺栓 GB5785-M12*1.5*35-8.8 BOLT GB5785-M12*1.5*35-8.8 32
5 7200000978 油封 HG4-692-67 OIL SEAL 2
6 7200000197 外壳 HUB WHEEL 2
7 7200000188 螺栓 RIM BOLT 各 8
8 7200000194 球螺母 RIM NUT 各 8
9 7200000220 轴承 GB297-2007114 BEARING GB297-2007114 各 2
10 7200000168 齿圈 AXLE RING GEAR 2
11 7200000227 垫圈 GB858-56-Q235A WASHER GB858-56-Q235A 2
12 7200000979 圆螺母 GB810-M56*2 LOCK NUT GB810-M56*2 2
13 7200000201 行星架 PLANET CARRIER 2
14 7200000204 行星轮轴 PLANET SHAFT 6
15 7200000202 行星轮 ALANET GEAR 6
16 7200000203 行星轮挡圈 RING SNAP 12
17 7200000222 钢球 GB308-5-GCr15 STEEL BALL 6
18 4015000026 垫圈 GB93-12-65Mn WASHER 16
19 7200000223 螺栓 GB32.3-M12*1.5*35-8.8 BOLT GB32.3-M12*1.5*35-8.8 32
20 7200000160 半轴 DIFFERERNTIAL AXLE 2
21 7200000195 太阳轮 GEAR-SUN 2
22 4015000020 挡圈 GB894.1-35-65Mn RING SNAP GB894.1-35-65Mn 2
23 7200000170 垫片 SPACER 2
24 7200000181 盖 COVER 2
25 4015000036 垫圈 GB93-8-65Mn WASHER 16
26 7200000981 螺栓 GB5782-M8*20 BOLT 16
27 4015000122 垫圈 JB982-24 WASHER 2
28 7200000186 螺塞 PLUG 2
29 7200000196 通气塞总成 BREATHER PIPE ASS’Y 1
30 4015000025 垫圈 GB93-10-65Mn WASHER 12
31 7200000982 螺栓 M10*25 BOLT 12
32 7200000217 销 GB119-A12*32-35 PIN GB119-A12*32-35 4
33 7200000159 O 型密封圈 O-IRNG 2
34 7200000155 滚针 GB309-3*30-GCr9 ROLLER GB309-3*30-GCr9 174

1 7200000228 开口销 GB91-4*40EpZn-Q235A SPLIT PIN 1
2 7200000983 六角开机理螺母 CASTLE NUT 1
3 7200000172 垫圈 WASHER 2
4 7200000214 主动齿轮 INPUT FLANGE 1
5 7200000177 防尘罩 DUST PROOF 1
6 7200000206 油封总成 OIL SEAL 1
7 GB1235 O－RING O－RING 1
8 7200000210 轴承盖 SEAL SEAT 1
9 7200000191 密封垫片 SPACER 1
10 7200000156 轴承 GB297-7609 BEARING 2
11 7200000212 轴承套 BEARING SLEEVE 2
12 7200000988 垫圈 GB5782-12 WASHER 6
13 7200000984 螺栓 GB93-M12*1.25*45 BOLT 6
14 7200000173 调整垫片 SHIM 1 组
15 7200000209 轴承调整垫片 SHIM 1 组
16 7200000211 轴承隔套 SLEEVE 1
17 7200000190 铆钉 RIVER 12
18 7200000178 防松垫片 LOCK PLATE 4
19 7200000157 轴承 GB297-7510 BEARING 2
20 7200000174 调整螺母 ADJUSTING NUT 2
21 7200000216 主减速器壳 MAIN REDUCER CASE 1
22 7200000213 轴承止推垫圈 SPACER 1
23 7200000169 从动锥齿轮 SHRAL BEVEL GEAR 1
24 7200000166 差速器轴承盖 SEALING SPACER AXLE CASE 1
25 7200000175 调整螺母锁片 BEARING COVER 2
26 7200000175 调整螺母锁片 LOCK PLATE 2
27 4015000036 垫圈 GB93-8-65Mn WASHER 2
28 7200000989 螺栓 GB5782-M8*16 BOLT 2
29 7200000986 防松垫片 WASHER 4
30 7200000226 螺栓 GB5785-M14*1.5*70-8.8 BOLT 4
31 7200000215 主动锥齿轮 SPIRAL BEVEL PINION 1
32 7200000219 轴承 GB283-102205 BEARING 1
33 4015000130 挡圈 GB894.1-25-65Mn RING 1
34 7200000200 行星齿轮垫 PLANET GEARING SPACER 4
35 7200000199 行星齿轮 PLATE GEAR 4
36 7200000165 差速器右壳 RIGHT CASE DIFFERENTIAL 1
37 7200000162 半轴齿轮垫 THRUST WASHER 2
38 7200000161 半轴齿轮 SPIDER GEAR 2
39 7200000164 差速器行星齿轮轴 CARDEN SHAFT 2
40 7200000163 差速器壳螺栓 BOLT 8
41 7200000167 差速器左壳 LEFT CASE DIFFERENTIAL 1

1 4190000119 轮辋 LY13-20.916.0A RIM LY13-20.916.0A 4
2 2050900108 轮胎 GB2980-16/70-20 TIRE GB2980-16/70-20 4

1 4120000986 操纵机构 LG12-918CZJG CONTROL MECHANISM LG12-918CZJG 1 部件
2 4011000447 螺栓 GB16674-M10*20EpZn-8.8 BOLT GB16674-M10*20EpZn-8.8 6
3 4120000365 多路阀 ZL20DL1-02 MULTIPLE UNIT VALVE 1 部件
4 4011000479 螺栓 GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8 4
5 4015000168 垫圈 GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV 8
6 4013000011 螺母 GB6170-M12EpZn-8 NUT GB6170-M12EpZn-8 8
7 4011000467 螺栓 GB16674-M12*45EpZn-8.8 BOLT GB16674-M12*45EpZn-8.8 6
8 2912000652 多路阀固定板 MOUNTED PLATE OF MULTIPLE UNIT VALVE 1 Q235A
9 4041000676 直接头 LGB120-03630 CONNECTOR LGB120-03630 1 部件
10 4041000685 O 形圈 LGB168-12631 O-RING LGB168-12631 6
11 2912000654 组合直角接头 UNIT ANGLE COUPLING 1 35
12 4030000504 O 形圈 GB3452.1-25.8*1.80G O-RING GB3452.1-25.8*1.80G 1
13 4041000675 软管 LGB165-014130 PIPE LGB165-014130 1 部件
14 2912000655 组合直角接头 UNIT ANGLE COUPLING 2 35
15 4030000501 O 形圈 GB3452.1-15.0*1.80G O-RING GB3452.1-15.0*1.80G 5
16 4041000511 软管 LGB128012112 PIPE LGB128012112 1
17 4041000582 直接头 LGB120-02630 CONNECTOR LGB120-02630 5
18 2912000657 阀块 VALVE BLOCK 1 部件
19 4041000510 软管 LGB129-012045 PIPE LGB129-012045 1
20 4041000796 直接头 LGB120-02628 CONNECTOR LGB120-02628 1 35
21 4041000779 O 形圈 LGB168-12331 O-RING LGB168-12331 1
22 4011000481 螺栓 GB16674- M8*30EpZn-8.8 BOLT GB16674- M8*30EpZn-8.8 4
23 4030000279 O 形圈 GB3452.1-25*3.55G O-RING GB3452.1-25*3.55G 1 丁腈橡胶
24 2919000806 压盖 GLAND 1
25 2912000659 回油胶管 RETURN PIPE 1 部件
26 2912000660 压板 PRESS PLATE 1 Q235A
27 2912001117 橡胶板 RUBBER PLATE 2 氯丁橡胶
28 4011000282 螺栓 GB16674- M10*75EpZn-8.8 BOLT GB16674- M10*75EpZn-8.8 4
29 4013000007 螺母 GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 3
30 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV 4
31 2912000805 操纵软轴 CONTROL FLEXIBLE SHAFT 2 部件
32 2912000662 铰接头 PIN JOINT 2 Q235A
33 4016000195 销轴 GB882-B8*26EpZn-35 PIN ROLL GB882-B8*26EpZn-35 2
34 4019000184 开口销 GB91-3.2*18EpZn-Q235A SPLINT PIN 2
35 4015000025 垫圈 GB93-10-65Mn WASHER GB93-10-65Mn 1
36 2914000002 固定板 MOUNTED PLATE 1 Q235A
37 2914000652 转斗指示杆 INDICATING ROD OF BUCKET 1 部件
38 2914000004 转斗指示板 INDICATING PLATE OF BUCKET 1 Q235A
39 4120000979 转斗油缸 HSGL-100*55*404-779 TILT CYLINDER HSGL-100*55*404-779 1 部件
40 4011000461 螺栓 GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 6
41 2914000653 管夹 PIPE CLIP 1 Q235A
42 2914000654 转斗缸大腔钢管 BIG CHAMBER TUBE OF TILT CYLINDER 1 部件

43 2914000655 压板 PRESS PLATE 1 Q235A
44 2914000656 橡胶板 RUBBER PLATE 2 氯丁橡胶
45 4041000586 软管 LGB128-010145 PIPE LGB128-010145 1 部件
46 4041000587 软管 LGB128-010140 PIPE LGB128-010140 1 部件
47 4041000187 直接头 LGB120-02622 CONNECTOR LGB120-02622 1
48 4041000771 O 形圈 LGB168-11924 O-RING LGB168-11924 1
49 4120001153 动臂油缸 HSGL-90*50*640-965 LIFT CYLINDER HSGL-90*50*640-965 2 部件
50 2913000652 左动臂缸小腔钢管 SMALL CHAMBER TUBE OF LEFT LIFT CYLINDER 1 部件
51 2913000653 左动臂缸大腔钢管 BIG CHAMBER TUBE OF LEFT LIFT CYLINDER 1 部件
52 4030000242 O 形圈 GB3452.1-12.5*1.80G O-RING GB3452.1-12.5*1.80G 4
53 2913000654 右动臂腔小腔钢管 SMALL CHAMBER TUBE OF RIGHT LIFT CYLINDER 1 部件
54 2913000655 右动臂腔大腔钢管 BIG CHAMBER TUBE OF RIGHT LIFT CYLINDER 1 部件
55 2913000656 动臂联三通钢管 THREE-WAY OILTUBE OF LIFTING CYLINDER 2 部件
56 4041000702 软管 LGB128-006075 PIPE LGB128-006075 2 部件
57 4041000114 软管 LGB128-006070 PIPE LGB128-006070 1 部件
58 4041000699 软管 LGB127-006075 PIPE LGB127-006075 1 部件
59 2913000657 动臂联大腔二通钢管 OIL TUBE OF BIG CHAMBER LIFT CYLINDER 2 部件
60 2913000658 动臂联小腔二通钢管 OIL TUBE OF SMALL CHAMBER LIFT CYLINDER 2 部件
61 4011000555 U 形螺栓 JB/ZQ4321-18Zn-Q235A.F U-BOLT JB/ZQ4321-18Zn-Q235A.F 4
62 4013000028 螺母 6170-M6EpZn-8 NUT 6170-M6EpZn-8 8
63 4015000207 垫圈 97.1-6EpZn-300HV WASHER 97.1-6EpZn-300HV 8
64 4011000455 螺栓 GB16674-M8*25EpZn-8.8 BOLT GB16674-M8*25EpZn-8.8 2
65 2913000968 管夹 PIPE CLIP 2
66 2913000659 动臂缸胶管 PIPE OF LIFT CYLINDER 4 部件

1 2902000652 燃油箱体 FUEL TANK 1
2 2902000653 滤油器 FILTER 1 部件
3 2902000654 密封垫 SEAL WASHER 1 耐油橡胶石棉板
4 2902000655 加油口盖 COVER 1 HT200
5 4011000114 螺栓 GB5785-M20*2*60EpZn-8.8 BOLT GB5785-M20*2*60EpZn-8.8 1
6 4013000040 螺母 GB6171-20*2EpZn-8 NUT GB6171-20*2EpZn-8 1
7 4015000176 垫圈 GB97.1-20-300HV WASHER GB97.1-20-300HV 1
8 4120000046 胶管 JB8406-A10*560 TUBE JB8406-A10*560 1 耐油夹布胶管
9 4017000010 喉箍 JB8870-d20 CLIP JB8870-d20 1 部件
10 2902000656 透气钢管 BREATHER TUBE 1 Q235A
11 4011000447 螺栓 GB16674-M10*20EpZn-8.8 BOLT GB16674-M10*20EpZn-8.8 6
12 4030000022 O 形圈 GB3452.1-200*7.0G O-RING GB3452.1-200*7.0G 1 耐油橡胶
13 2902000657 盖板 COVER PLATE 1 Q235A
14 4011000446 螺栓 GB5785-M24*2*120EpZn-8.8 BOLT GB5785-M24*2*120EpZn-8.8 2
15 4015000187 垫圈 GB96.1-24-300HV WASHE GB96.1-24-300HV 2
16 4120000093 液位计 YWZ-200 FUEL LEVEL GAUGE YWZ-200 1
17 2902000006 垫圈 WASHE 1 T2
18 2902000658 滤油器总成 STRAINER ASS’Y 1
19 4014000047 螺钉 GB818-M5*8EPZn-4.8 SCREW GB818-M5*8EPZn-4.8 5
20 2902000685 垫片 SPACER 1 耐油橡胶石棉板
21 2902000684 法兰盖 FLANGE 1 Q235A
22 4011000455 螺栓 GB16674-M8*25EpZn-8.8 BOLT GB16674-M8*25EpZn-8.8 2
23 4120000099 球阀 MBS216-1/2″ GLOBALE VALVE MBS216-1/2″ 1 部件
24 2902000659 护板 GUARD PLATE 1 Q235A
