Description

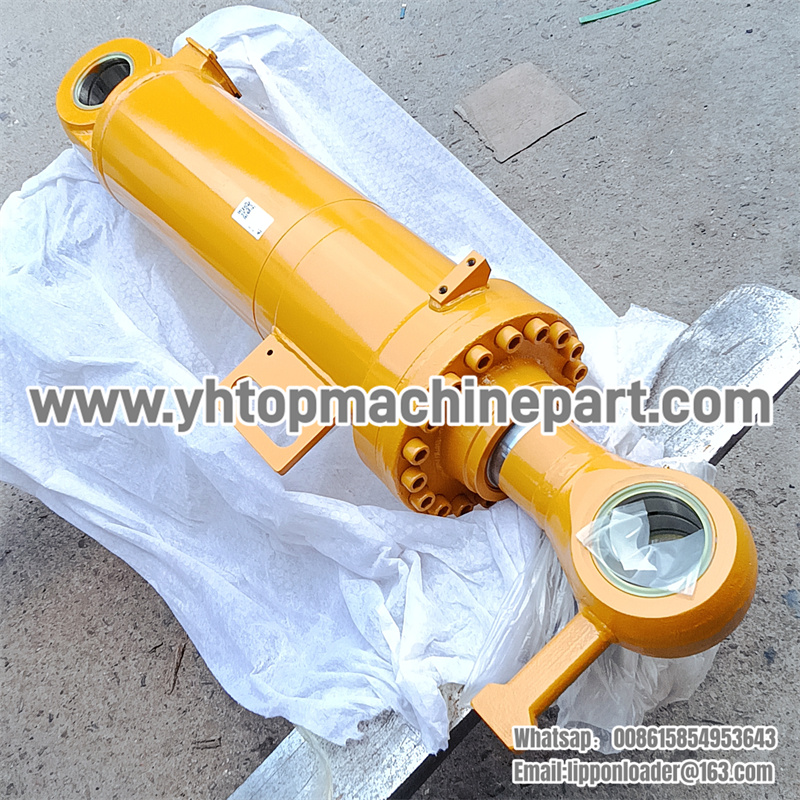

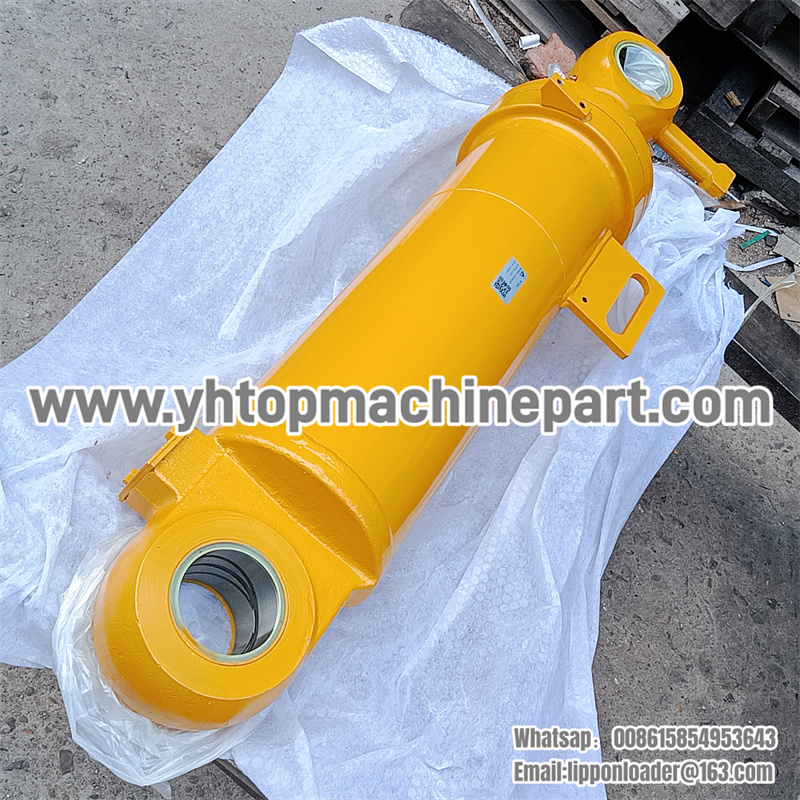

4120002264 Tilt Cylinder SDLG LG956L Loader parts

1 垫圈GB96.1-10EpZn-300HV WASHER 4015000197
2 螺栓GB5783-M10*25EpZn-8.8 BOLT 4011000082
3 放平护板 INDICATOR PLATE 29140011721
4 转斗油缸HSGF-190*100*545-1085 TILT CYLINDER 4120002264
(4120002264J) N 1
5 螺栓GB5783-M10*20EpZn-8.8 BOLT 4011000081
6 软管LGB106-012165 HOSE ASSEMBLY 4041000169
7 分体法兰LGB117-312550 FLANGE HALF 4041000056
8 螺栓GB16674-M10*30EpZn-8.8 BOLT 4011000475
9 O形圈GB3452.1-37.5*3.55G O-RING 4030000029
-4041000878 GB3452.1-37.5*3.55G Y 7
10 接近开关J7-D10B1/DC POSITION SWITCH 4130001028
11 螺塞LGB135-01422 PLUG 4041000774
12 O形圈LGB168-11124 O-RING 4041000767
13 螺栓GB16674-M10*50EpZn-8.8 BOLT 4011000309
14 螺栓GB16674-M10*55EpZn-8.8 BOLT 4011000473
15 转斗缸大腔钢管 PIPE 29140000051
16 压板 PLATE 29140000121
17 橡胶板 RUBBER PLATE 29140000131
18 橡胶板 RUBBER PLATE 29140009291
19 螺栓GB5782-M10*110EpZn-8.8 BOLT 4011000797
20 钢管 PIPE 29140010821
21 接近开关支架 BRACKET 29140013911
22 接近开关过渡线束 WIRING HARNESS 29410000511
23 垫圈GB97.1-12EpZn-300HV WASHER 4015000168
24 螺栓GB5783-M12*20EpZn-8.8 SCREW 4011000087
25 CLIP 1027-003-1200 CLIP 4130001006
26 螺栓GB16674-M8*20EpZn-8.8 BOLT 4011000458
27 动臂指示板 INDICATOR PLATE 29140007551
28 垫圈GB96.1-12EpZn-300HV WASHER 4015000186
29 转斗联过渡钢管B PIPE 29140000161
30 分体法兰LGB117-312551 FLANGE HALF 4041000027
31 转斗联过渡钢管A PIPE 29140000141
