Description

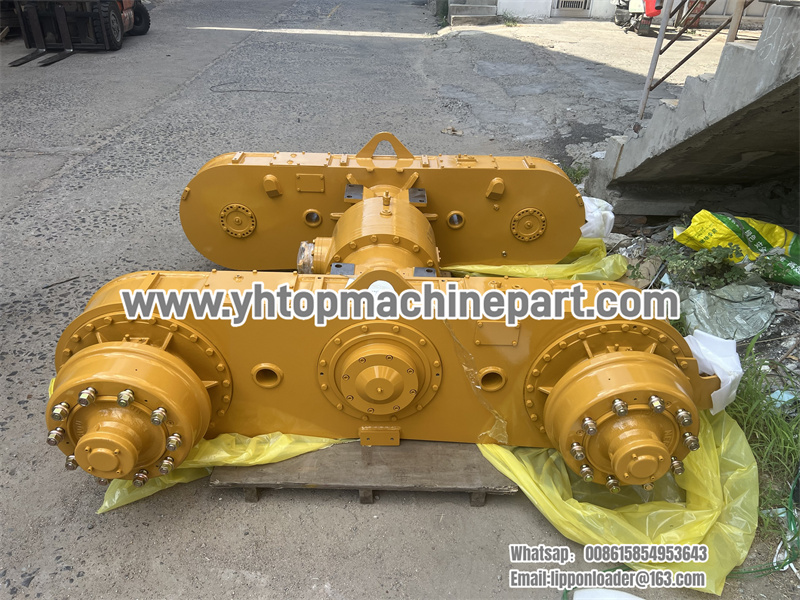

4110001903 Housing Assembly-Rear Axle G9165 G9180 G9190 G9220 SDLG Grader Motor

1 锁紧螺母75 500 269 LOCK NUT 4110001903024
2 连接法兰82 513 615 CONNECTION FLANGE 4110001903025
3 防尘罩75 201 748 DUST COVER 4110001903026
4 连接法兰组件82 513 602 CONNECTION FLANGE 4110001903027
5 螺栓M14*1.5*55 50 011 011 SCREW 4110001903028
6 垫圈14 52 020 005 WASHER 4110001903029
7 螺栓M12*1.5*55 50 011 008 SCREW 4110001903030
8 垫圈12 52 020 004 WASHER 4110001903031
9 盖82 513 616 COVER 4110001903032
10 油封53 500 007 SEALING RING 4110001903033
11 油封53 500 008 SEALING RING 4110001903034
12 盖总成82 513 603 COVER 4110001903035
13 轴承31313 54 100 014 BEARING 4110001903036
14 轴承座82 513 607 BEARING SEAT 4110001903037
15 调整垫片组75 200 123 SHIM 4110001903038
16 轴承隔套组82 513 604 SLEEVE 4110001903039
17 轴承31314 54 100 015 BEARING 4110001903040
18 主传动齿轮副82 513 601 CROWN WHEEL 4110001903041
19 挡圈90 52 100 012 RETAINING RING 4110001903042
20 轴承142807Y 54 500 006 BEARING 4110001903043
21 螺栓M8*16 50 004 012 SCREW 4110001903044
22 钢丝2*100 56 000 012 IRON WIRE 4110001903045
23 锁紧片82 513 611 LOCK PLATE 4110001903046
24 差速器螺母75 200 118 NUT 4110001903047
25 组合密封垫24 53 200 005 SEALING WASHER 4110001903048
26 螺塞M24*1.5 75 500 197 PLUG 4110001903049
27 螺栓M8*25 50 009 008 SCREW 4110001903050
28 垫圈8 52 020 002 WASHER 4110001903019
29 盖92 200 130 Cover 4110002967007
30 螺母M14*1.5 75 501 992 NUT 4110001903053
31 主减壳体82 513 608 DIFFERENTIAL CARRIER HOUSING 4110001903054
32 轴承47686/47620A 54 500 003 BEARING 4110001903055
33 差速器总成92 150 026 DIFFERENTIAL 4110001903056
34 螺栓M14*1.5*50 75 500 003 SCREW 4110001903057
35 铜套79 600 096 SLEEVE 4110001903058
36 连接座82 513 610 CONNECTION FLANGE 4110001903059
37 销16*40 51 240 009 PIN 4110001903060
38 螺母M20*2 51 070 006 NUT 4110001903061
39 止推螺栓82 513 609 SCREW 4110001903062
40 螺栓M12*35 50 120 004 SCREW 4110001903063
41 螺栓M16*1.5 75 501 981 SCREW 4110001903064
42 NOSPIN差速器组件57 000 088 DIFFERENTIAL SPIDER 4110001903065
43 差速器壳体组件79 800 003 DIFFERENTIAL HOUSING 4110001903066
44 螺母M16*1.5 75 501 993 NUT 4110001903067
45 垫圈75 500 231 WASHER 4110001903068
1 双排链轮轴83 513 201 SHAFT 4110001903069
2 油封FB160*190*15 53 100 007 SEALING RING 4110001903070
3 轴承33022 54 100 058 BEARING 4110001903071
4 行星减速壳体18 100 017 PLANETARY HOUSING 4110001903072
5 隔套83 513 203 SPACER SLEEVE 4110001903073
6 调整环83 513 204 SHIM 4110001903074
7 轴承32026 54 100 007 BEARING 4110001903075
8 螺钉M10*14 83 513 205 SCREW 4110001903076
9 行星轮架83 513 206 PLANET CARRIER 4110001903077
10 挡板75 600 457 GUARD PLATE 4110001903078
11 滚针75 600 330 NEEDLE ROLLER 4110001903079
12 行星轮79 001 547 PLANET GEAR 4110001903080
13 隔套75 600 334 SPACER SLEEVE 4110001903081
14 行星轮轴79 001 545 PLANET GEAR SHAFT 4110001903082
15 隔套77 000 021 SPACER SLEEVE 4110001903083
16 太阳轮79 001 524 SUN GEAR 4110001903084
17 挡圈50 52 100 009 RETAINING RING 4110001903085
18 调整支柱77 000 133 Adjusting pin 4110003090006
19 挡块73 520 042 BLOCK 4110001903087
20 紧固螺栓M10*1 93 200 021 SCREW 4110001903088
21 螺母M85*2 93 200 016 NUT 4110001903089
22 锥套93 200 018 SLEEVE 4110001903090
23 齿圈支承总成83 513 208 HOUSING 4110001903091
24 齿圈76 101 031 GEAR RING 4110001903092
25 卡环76 101 033 RETAINING RING 4110001903093
26 齿圈支承77 500 940 HOUSING 4110001903094
27 垫圈83 513 207 WASHER 4110001903095
1 螺塞M24*1.5 75 500 197 PLUG 4110001903049
2 组合密封垫24 53 200 005 SEALING WASHER 4110001903048
3 平衡箱组件90 510 013 TANDEM DRIVE 4110001903111
4 轴承33113 54 100 059 BEARING 4110001903112
5 链轮与轴组件85 513 031 CHAIN GEAR 4110001903113
6 油封FB115*140*12 53 100 029 SEALING RING 4110001903114
7 O型密封圈475*7 53 000 055 O-RING 4110001903115
8 连接盘85 513 019 CONNECTION FLANGE 4110001903116
9 垫圈85 513 043 WASHER 4110001903117
10 轴承32018 54 100 002 BEARING 4110001903118
11 油封FB100*125*12 53 100 038 SEALING RING 4110001903119
12 隔套85 513 042 SPACER SLEEVE 4110001903120
-28100006661 N 2
13 螺栓M8*25 50 008 006 SCREW 4110001903155
14 油封座85 513 034 SEAT 4110001903122
15 梯子85 865 005 STEP 4110001903123
16 螺栓M14*1.5*55 50 011 011 SCREW 4110001903028
17 O型密封圈135*3.1 53 000 013 O-RING 4110001903125
18 轴承座85 513 015 BEARING SEAT 4110001903126
19 垫圈12 52 020 004 WASHER 4110001903031
20 螺栓M12*40 50 009 021 SCREW 4110001903128
21 油杯M10*1 56 300 006 LUBRICATING NIPPLE 4110001903129
22 支撑套85 763 021 SLEEVE 4110001903161
23 O型密封圈260*5.7 53 000 016 O-RING 4110001903131
24 盖85 513 013 COVER 4110001903132
25 垫圈8 52 020 002 WASHER 4110001903019
26 螺栓M8*20 50 009 007 SCREW 4110001903134
27 双排链轮85 513 022 CHAIN GEAR 4110001903135
28 滚子链32B*1-54 55 410 003 ROLLER 4110001903136
29 轴承座85 513 027 BEARING SEAT 4110001903137
30 轴承22319C 54 900 008 BEARING 4110001903138
31 螺钉M16*50 50 120 013 SCREW 4110001903154
32 压板85 513 021 ANCHOR PLATE 4110001903140
33 盖85 513 025 COVER 4110001903141
34 螺栓M12*35 50 120 004 SCREW 4110001903063
35 螺栓M12*30 50 009 058 SCREW 4110001903143
36 螺钉M16*40 50 120 010 SCREW 4110001903144
37 垫圈16 52 020 006 WASHER 4110001903004
38 螺栓M14*1.5*40 50 012 019 SCREW 4110001903146
39 垫圈14 52 020 005 WASHER 4110001903029
40 螺栓M16*32 50 009 030 SCREW 4110001903148
41 通气塞Z1/8″56 100 001 AIR VENT COCK 4110001903149
42 盖组件85 513 014 COVER 4110001903150
43 紧定螺钉M8*2050193001 SCREW 4110001903151
44 盖85 513 039 COVER 4110001903152
45 链轮与轴组件85 513 030 CHAIN GEAR 4110001903153
46 调整垫片85 513 045 SHIM 4110001903158
47 调整垫片85 513 046 SHIM 4110001903159
48 调整垫片85 513 047 SHIM 4110001903160
49 调整垫片85 513 048 SHIM 4110001903162
50 调整垫片85 513 049 SHIM 4110001903163
51 调整垫片85 513 050 SHIM 4110001903164
