Description

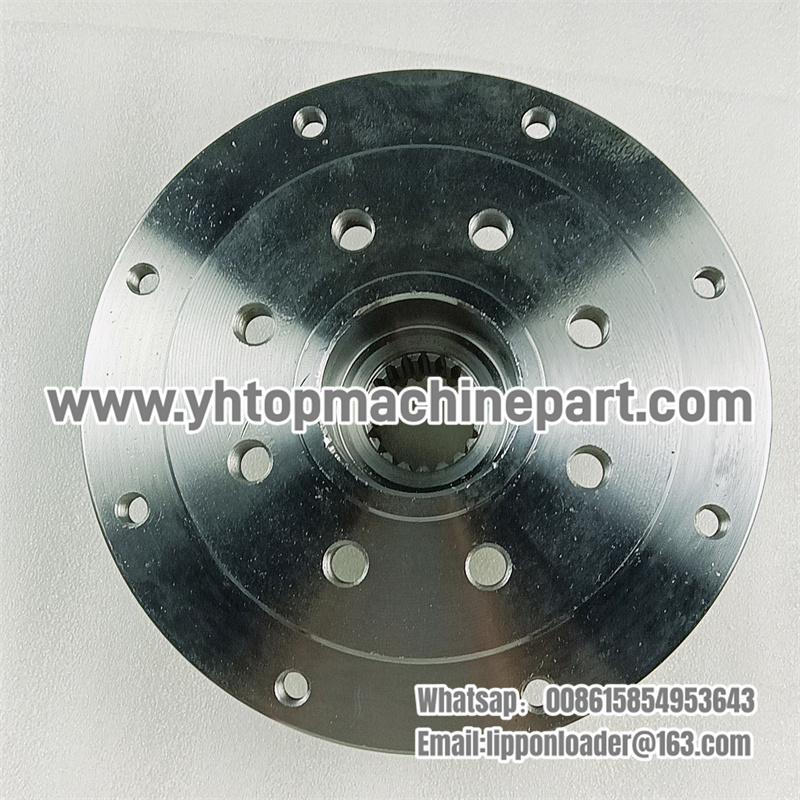

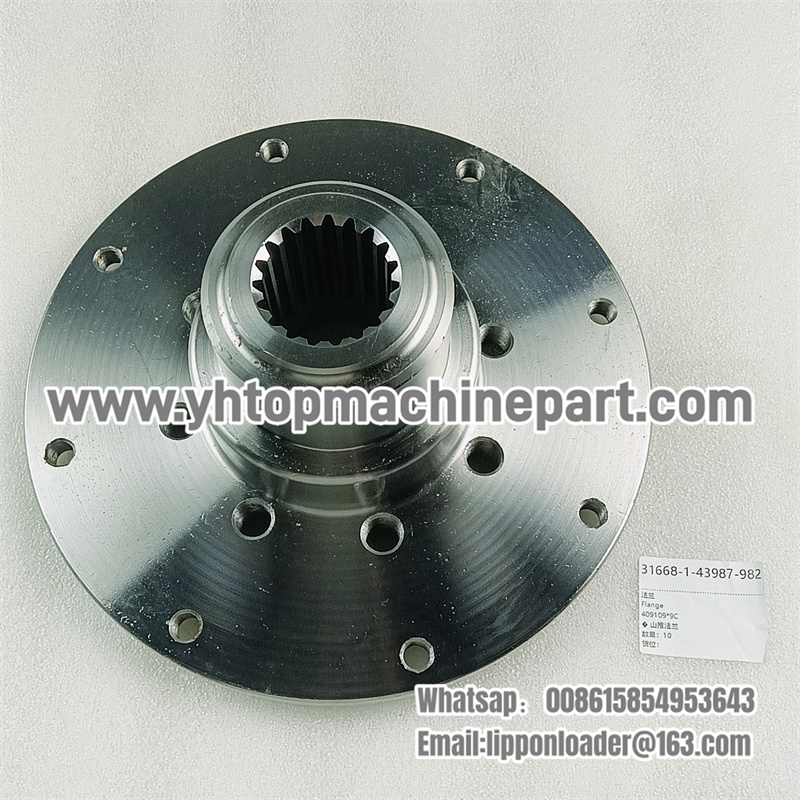

409109×9C Flange SHANTUI SL50W Loader Transmission part

SHANTUI SL50W Series Wheel Loader Transmission Catalog
014 变速箱箱体部件(杭州前进)
FIG.11 GEARBOX CASE PART(HANGZHOU ADVANCE)
1 GB894.1 90 轴用弹性挡圈-A型 Circlip for shaft 2
2 GB276 6210N 外圈有止动槽的深沟球轴承6210N Ball bearing 2
3 503056A 转向泵驱动齿轮 Drive gear 1
4 403055X7B 转向油泵驱动轴 Drive shaft 1
5 GB1096 14 ×9 ×36 普通平键14×9 ×36 Flat key 1
6 GB276 6012 深沟球轴承 6012 Ball bearing 1
7 403057 轴承套 Bearing holder 1
8 403021 密封垫片 Gasket seal 1
9 403005A 箱体 Case 1
10 GB825 M20 吊环螺钉M20 Eye screw 2
11 403024-27 透气帽 Aeration cap 1
12 403028 圆锥堵塞 Cone plug 1
13 403223 螺塞 Plug screw 1
15 503610A 轴齿轮 Shaft gear 1
16 GB276 6211 深沟球轴承 6211 Ball bearing 1
17 403601-608X2 齿轮泵 Gear pump 1
18 402106 垫圈 Washer 2
19 402111 变速箱接头 Gearbox joint 4
20 GB119.1 10m6×30 圆柱销10m6 ×30 Column pin 1
21 GB93 10 弹簧垫圈10 Washer 78
22 GB5783 M10 ×25 六角头螺栓M10×25 Bolt 14
23 403400A 油底壳总成 Oil sump tank 1
24 403022 圆柱销 Column pin 1
25 ZL50-03-JYS 检油塞ZG1/4 Plug 1
26 GB5783 M18 ×40 六角法兰面螺栓M18×40 Bolt 8
27 403032-34 连接座 Connect seat 2
28 GB5782 M10 ×75 螺栓M10 ×75 Bolt 4
29 GB5782 AM10 ×70 螺栓AM10 ×70 Bolt 12
30 503700-001 变速操纵阀 Gearshift control valve 1
31 ZL50C 301 003 密封垫 Gasket 1
32 402007-14 变速油泵进油管 Sucker 1
33 403001 密封垫 Gasket 1
34 GB93 10 弹簧垫圈10 Washer 2
35 GB5783 M10 ×30 六角头螺栓M10×30 Bolt 38
36 403002 端盖 End cover 1
015 变速箱一轴总成(杭州前进)
FIG.12 GEARBOX ONE SHAFT ASSY.(HANGZHOU ADVANCE)
序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 403101 旋转油封 Rotary oil seal 1
2 GB276 6016 深沟球轴承 6016 Ball bearing 1
3 403103 输入二级齿轮 Input second gear 1
4 403102 旋转油封 Rotary oil seal 1
5 GB301 51111 推力球轴承 51111 Ball bearing 1
6 403104 输入一级齿轮 Input first gear 1
7 GB276 6311 深沟球轴承 6311 Ball bearing 1
8 403105 调整垫 Adjust shim 1组
016 变速箱二轴及行星排部件(杭州前进)
FIG.13 GEARBOX TWO SHAFT AND PLANET LINE PART
(HANGZHOU ADVANCE)
序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 GB276 6211 深沟球轴承 6211 Ball bearing 1
2 ZL50C 202 002 大超越离合器 Overrun clutch 1
3 403211 隔离环 Spacer ring 1
4 GB276 6210 深沟球轴承 6210 Ball bearing 1
5 403212 调整圈 Regulating ring 1
6 GB276 6010 深沟球轴承 6010 Ball bearing 1
7 403221 倒档行星轴 Reverse gear planet shaft 4
8 403217 垫圈 Washer 15
9 403219 隔离套 Distance sleeve 16
10 403218 行星轮 Planet wheel 8
11 GB309 Φ4 ×35 滚针Ф4×35 Roller pin 176
12 403213 倒挡行星架 Reverse gear planet frame 1
13 GB5783 M8 × 14 螺栓M8× 14 Bolt 4
14 GB93 8 弹簧垫圈 8 Washer 4
15 403215X1 止动垫圈 Lockwasher 4
16 403216 倒档内齿圈 Reverse gear internal-geared 1
17 403227X1 一档行星轴 One gear planet shaft 4
18 403223X1 一档行星架 One gear planet frame 1
19 403220 卡圈 Collar 1
20 403226 太阳轮 Sun wheel 1
21 GB305 6210N 外圈有止动槽的深沟球轴承 6210N Ball bearing 1
22 GB894.1 90 挡圈90 Stop collar 1
23 403224X1 止动盘 Arresting disc 1
24 403225X1 直接当连接盘 Connect disc 1
25 GB93 10 弹簧垫圈10 Washer 17
26 GB5786 M10 ×1.25×30 螺栓M10 × 1.25 ×30 Bolt 4
27 403018A 倒挡活塞体 Piston body 1
28 403006A 外密封环 Outer ring seal 2
29 403020A 内密封环 Inner ring seal 1
30 503012-013 倒挡一档主动片总成 Active piece assembly 9
31 403011 倒挡一档从动片 Slave piece 9
32 403222 一档内齿圈 One gear internal-geared 1
33 403014-015 摩擦片隔离架总成 Friction disk isolate frame Assembly 1
34 403017 弹簧 Spring 15
35 403016 弹簧销轴 Spring pin 15
36 403010A 内密封环 Inner ring seal 1
37 403008A 一档活塞体 One gear piston body 1
38 403023 固定板 Mounted plate 1
39 403004 一挡有缸体 One gear cylinder body 1
40 GB3452.1 20 ×2.4 O形圈20 ×2.4 “O ” ring 1
41 GB93 14 弹簧垫圈14 Washer 8
42 GB5783 M14 ×40 螺栓M14 ×40 Bolt 8
43 403003A 中盖 Middle cover 1
017 变速箱二轴总成(杭州前进)
FIG.14 GEARBOX TWO SHAFT ASSY.(HANGZHOU ADVANCE)

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 GB6171 M10 × 1 螺母M10× 1 Nut 20
2 GB895 10 垫圈10 Washer 20
3 403203 中间输入轴 Middle input shaft 1
4 GB276 6211 深沟球轴承 6211 Ball bearing 1
5 403210 隔离套 Distance sleeve 1
6 403205A 滚柱左挡圈 Left collar 1
7 403209 内环凸轮 Internal ring jaw 1
8 403204A 弹簧 Spring 40
9 403202A 弹簧座 Spring seat 40
10 403207A 滚柱 Roller 20
11 403206 滚柱右挡圈 Right collar 1
12 GB893.1 80 孔用弹性挡圈80 Circlip for hole 1
13 403208A 外环齿轮 External ring gear 1
14 GB276 6210 深沟球轴承 6210 Ball bearing 1
15 403201 螺栓 Bolt 20
018 变速箱三轴总成(杭州前进)
FIG.15 GEARBOX THREE SHAFT ASSY.(HANGZHOU ADVANCE)

序号 部件号 PART NO. 零件名称 PART NAME 数量 Q’TY
1 GB276 6022 深沟球轴承 6022 Ball bearing 1
2 403501 直接挡受压盘 Pressure disc 1
3 403502 直接档轴 Direct high shaft 1
4 403509 Ⅱ档齿圈 Gear ring 1
5 403507 直接档从动片 Direct high slave piece 1
6 503505-506 直接档主动片 Direct high active piece 2
7 GB276 6204 深沟球轴承 6204 Ball bearing 1
8 GB894.1 65 轴用弹性挡圈 65 Circlip for shaft 1
9 403513 盘型弹簧 Saucer spring 1
10 403508-510A 直接档活塞总成 Direct high plunger assembly 1
11 403101 旋转油封 Rotary oil seal 1
12 403516 销 Pin 3
13 403512A 直接档油缸体 Direct high oil cylinder body 1
14 GB5785 M12 × 1.25 × 100 螺栓M12 × 1.25 × 100 Bolt 12
15 403517 锁片 Locking plate 6
16 GB93 12 弹簧垫圈12 Washer 12
17 403504 圆柱销 Column pin 6
18 GB5783 M8 ×20 螺栓M8×20 Bolt 12
19 GB93 8 弹簧垫圈8 Washer 12
20 403511 中间轴输出齿轮 Middle shaft output gear 1
21 GB276 6311 深沟球轴承 6311 Ball bearing 1
22 403102 旋转油封 Rotary oil seal 1
23 403105 调整垫 Adjust shim 1组
019 变速箱四轴总成(杭州前进)
