Description

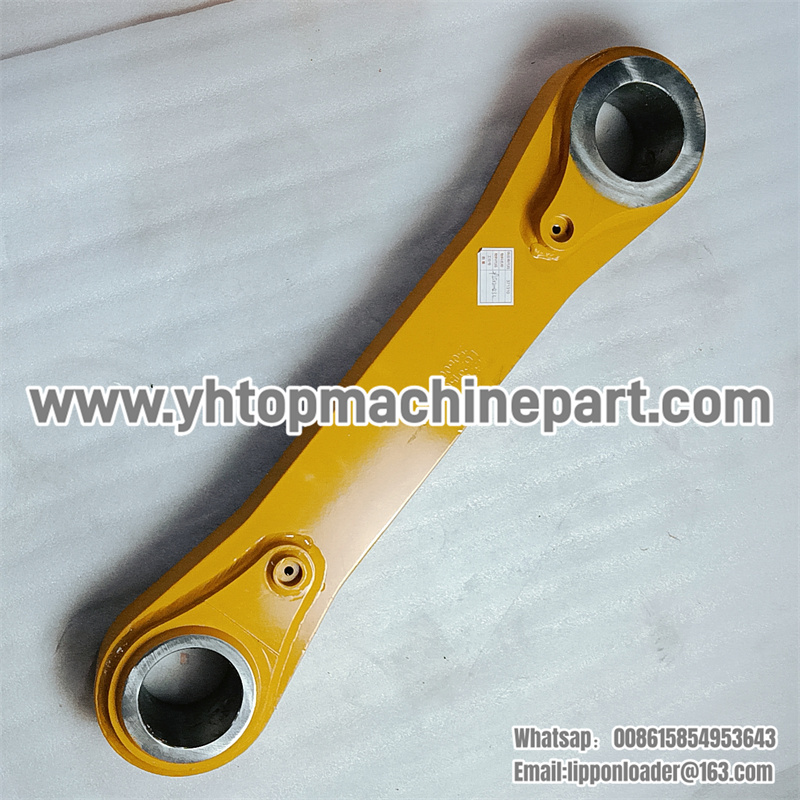

29150200432 29150200431 CONNECTING ROD FOR SDLG L968F WHEEL LOADER

1 动臂2963*1000 Lifting arm 29150026271
2 摇臂 ROCKER ARM 29150014941
3 连杆B722*100*113-60*124 Connecting rod 29150027811
1 油杯JB7940.1-M10*1 LUBRICATING NIPPLE 4030000065
2 垫圈LGB001-16flZnyc-480 WASHER 4040000051
3 螺栓GB5783-M16*30flZnyc-8.8-480 SCREW 4011001261
4 销轴LGB301-80*140*260-40Cr WELD PIN 4043000173
5 销轴LGB301-85*N*265-1N00Y Weld pin 4043002967
6 销轴LGB301-85*N*280-1N00Y Weld pin 4043002849
7 销轴LGB301-120*N*415-40Cr WELD PIN 4043000182
8 销轴LGB301-95*127*245/2G-40Cr PIN 4043000608
9 销轴LGB301-100*148*275-40Cr WELD PIN 4043000254
10 防尘圈LGB307-100 SEALING RING 4043000095
11 轴套LGB302-100*102C2 BUSHING 4043000596
12 O形圈LGB308-128*12 O-RING 4043000059
13 轴套 BUSHING 29160008991
14 防尘圈LGB307-85 SEALING RING 4043000056
15 垫片LGB303-120*180*1 SHIM 4043000597
16 轴套LGB302-120*104C1 Bushing 4043001541
17 防尘圈LGB307-120 SEALING RING 4043000190
18 垫片LGB303-95*150*1 SHIM 4043000037
19 垫片LGB303-95*150*2 SHIM 4043000038
20 轴套LGB302-95*104C2 BUSHING 4043000752
21 防尘圈LGB307-95 SEALING RING 4043000057
22 垫片LGB303-80*130*2 SHIM 4043000034
23 垫片LGB303-80*130*1 SHIM 4043000033
24 防尘圈LGB307-80 SEALING RING 4043000055
25 轴套LGB302-80*90A2 BUSHING 4043000026
1 固定板 PLATE 29120019611
2 螺栓GB16674.1-M10*30flZnyc-8.8-480 SCREW 4011001300
3 管夹 CLAMP 29120019601
4 螺栓GB16674.1-M10*20flZnyc-8.8-480 SCREW 4011001294
5 分体法兰LGB117-310491 FLANGE HALF 4041000026
6 O形圈GB3452.1-32.5*3.55G O-RING 4030000026
7 防尘盖LGB134-01049 COVER 4041000818
8 多路阀回油钢管 PIPE 29120025141
9 O形圈GB3452.1-37.5*3.55G O-RING 4030000029
-4041000878 GB3452.1-37.5*3.55G Y 4
10 螺栓GB5783-M12*75flZnyc-8.8-480 Bolt 4011001516
11 垫圈GB97.1-12flZnyc-300HV-480 WASHER 4015000428
12 多路阀固定板 PLATE 29120021571
13 螺栓GB16674.1-M14*35flZnyc-8.8-480 Bolt 4011001468
14 螺栓GB5782-M10*80flZnyc-10.9-480 Bolt 4011001585
15 垫圈GB97.1-10flZnyc-300HV-480 WASHER 4015000433
16 进油钢管 PIPE 29120019991
17 螺栓GB16674.1-M12*55flZnyc-8.8-480 Screw 4011001529
18 螺栓GB16674.1-M12*65flZnyc-8.8-480 SCREW 4011001312
19 橡胶块支架 BRACKET 29120019981
20 螺栓GB5783-M10*25flZnyc-8.8-480 SCREW 4011001248
21 垫圈GB96.1-10flZnyc-300HV-480 WASHER 4015000426
22 油路块总成 BLOCK 29120022901
23 螺塞LGB135-01422 PLUG 4041000774
24 O形圈LGB168-11124 O-RING 4041000767
25 软管LGB163-014103 HOSE 4041002098
26 螺栓GB16674.1-M12*35flZnyc-8.8-480 SCREW 4011001510
27 分体法兰LGB117-314650 FLANGE HALF 4041000011
28 O形圈GB3452.1-47.5*3.55G O-RING 4030000130
29 螺母GB6170-M10flZnyc-8-480 NUT 4013000370
30 多路阀KM300-III-21 Control valve 4120006567
31 多路阀支架 BRACKET 29120019571
32 管夹LGB172-A25*28 Hose clamp 4041002626
33 压板 PLATE 29120019531
34 螺栓GB5782-M10*90flZnyc-8.8-480 SCREW 4011001354
35 多路阀进油胶管 HOSE ASSEMBLY 29120023671
36 分体法兰LGB117-312550 FLANGE HALF 4041000056
37 软管LGB161-014159 HOSE ASSEMBLY 4041001957
