Description

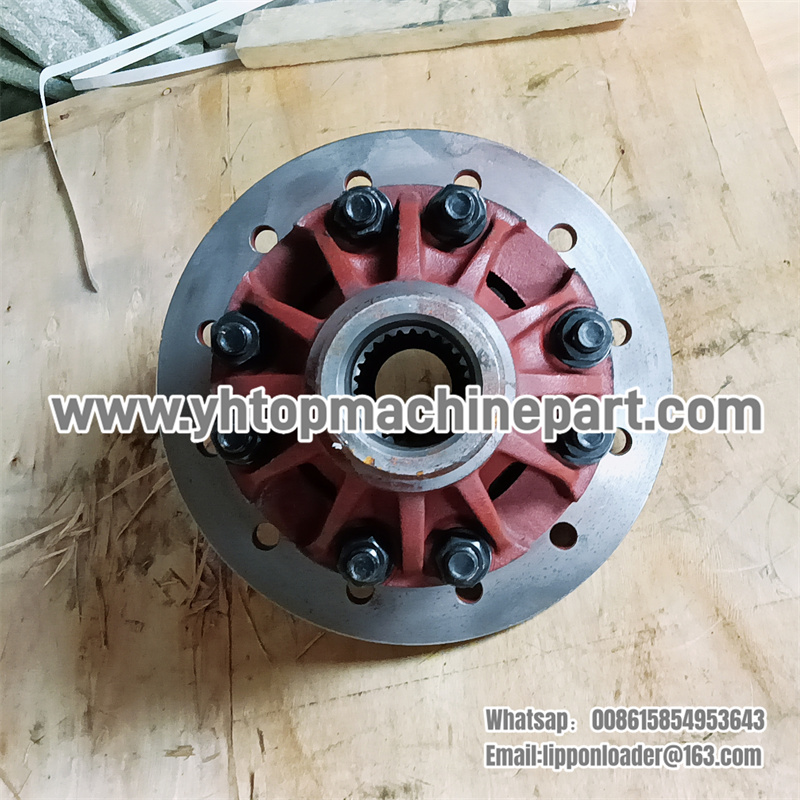

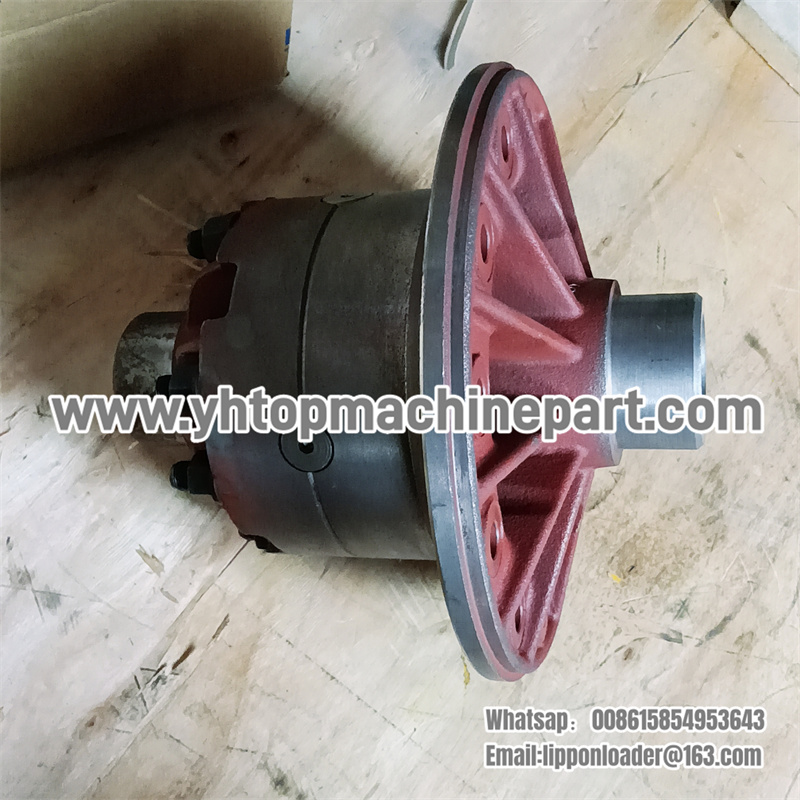

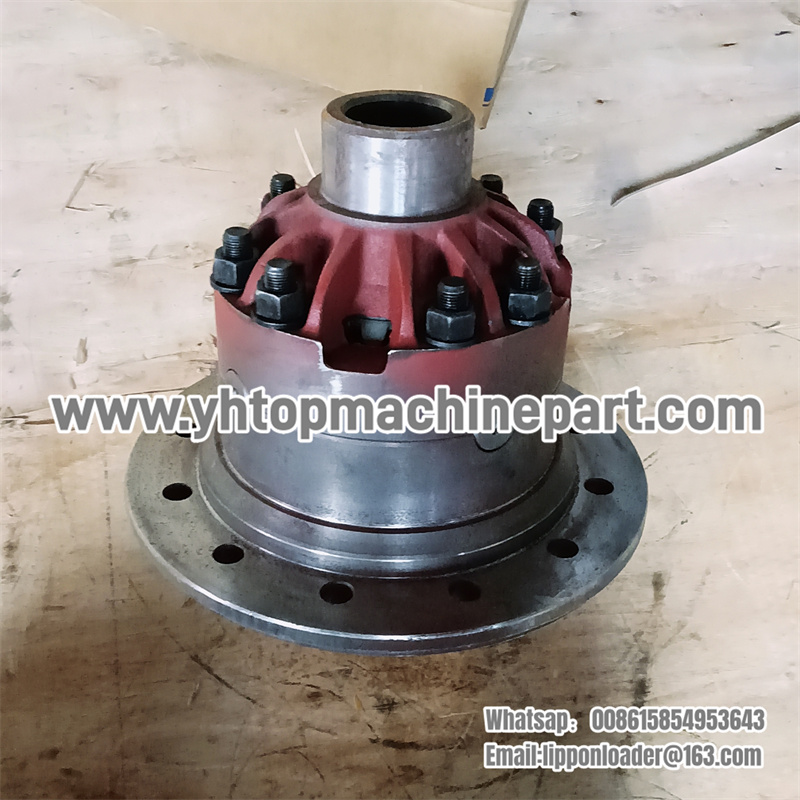

29070019611 Differential Assembly SDLG L955F LG956l Loader

1 调整垫片 SHIM 29070000151
2 调整垫片 SHIM 29070000161
3 调整垫片 SHIM 29070000171
4 螺栓GB5782-M14*55EpZn-8.8 BOLT 4011000067
5 垫圈GB93-14-65Mn SPRING WASHER 4015000027
6 螺母GB889.2-M33*1.5-8 LOCK NUT 4013000066
7 垫圈 WASHER 29070000221
8 密封圈GB13871.1-FB08010010-D SEALING RING 4030001002
9 O形圈GB3452.1-53.0*5.30G O-RING 4030000035
10 挡圈 RETAINING RING 29070000241
11 密封圈GB13871.1-FB08010012-F SEALING RING 4030000789
12 密封盖 SEALING COVER 29070000251
13 密封垫 GASKET 29070000261
14 滚动轴承GB297-31313 ROLLER BEARING 4021000030
15 螺栓GB5782-M12*55EpZn-8.8 BOLT 4011000186
16 垫圈GB93-12-65Mn SPRING WASHER 4015000026
17 轴承座 BEARING SEAT 29070000271
18 隔套 SLEEVE 29070022561
19 滚动轴承GB297-31314 ROLLER BEARING 4021000032
20 主动螺旋伞齿轮（左） CROWN WHEEL 29070012601
21 滚动轴承GB283-NUP2307 ROLLER BEARING 4021000027
22 挡圈GB894.1-35-65Mn RETAINING RING 4015000020
23 止推螺栓 SCREW 29070000301
24 螺母GB6173-M27*2-05 NUT 4013000052
25 锁紧片 LOCK WASHER 29070000311
26 销GB119.2-10u8*30 PIN 4016000124
27 O形圈LGB308-430*3.5 O-RING 4041000019
28 托架 CENTER HOUSING 29070000321
-2050900104 N 000001
29 锥齿轮垫片 THRUST WASHER 29070000331
30 锥齿轮 DIFFERENTIAL PINION 29070000341
31 调整螺母 NUT 29070000351
32 滚动轴承GB297-32216 ROLLER BEARING 4021000036
33 差速器右壳 DIFFERENTIAL HOUSING 29070000361
-2050900079 ZL50.5.1-21A N 000001
34 半轴齿轮 DIFFERENTIAL SIDE GEAR 29070013221
35 半轴齿轮垫片 SHIM 29070000381
36 轴承座 BEARING SEAT 29070000391
37 锁紧片 LOCK WASHER 29070000401
38 螺栓GB5786-M10*1*20EpZn-8.8 BOLT 4011000597
39 垫圈GB93-10-65Mn SPRING WASHER 4015000025
40 螺栓 GB5782-M22*100EpZn-10.9 BOLT 29070009521
41 垫圈 WASHER 29070001301
42 十字轴 SPIDER 29070000411
43 螺栓 BOLT 29070009491
44 螺母GB6176-M16*1.5-10 NUT 4013000198
45 垫圈 WASHER 29070009511
46 差速器左壳 DIFFERENTIAL HOUSING 29070000431
-2050900079 ZL50.5.1-14A N 000001
47 螺栓 BOLT 29070009501
48 从动螺旋伞齿轮（右） CROWN WHEEL 29070012611
49 固定销 PIN 29070000461
50 调整垫片 SHIM 29070022481
51 调整垫片 SHIM 29070022491
52 调整垫片 SHIM 29070022501
53 调整垫片 SHIM 29070022511
54 调整垫片 SHIM 29070022521
55 调整垫片 SHIM 29070022531
56 调整垫片 SHIM 29070022541
57 调整垫片 SHIM 29070022551
58 输入法兰 CONNECTION FLANGE 29070011091
59 输入法兰 CONNECTION FLANGE 29070011101
60 油封压盖 COVER 29070000641
61 前主从动螺旋伞齿轮 CROWN WHEEL 21909003501
62 锥齿半齿总成 GEAR KIT 21909006471
63 差速器左右壳 DIFFERENTIAL HOUSING 2050900079
64 差速器总成 DIFFERENTIAL SPIDER 29070019611
