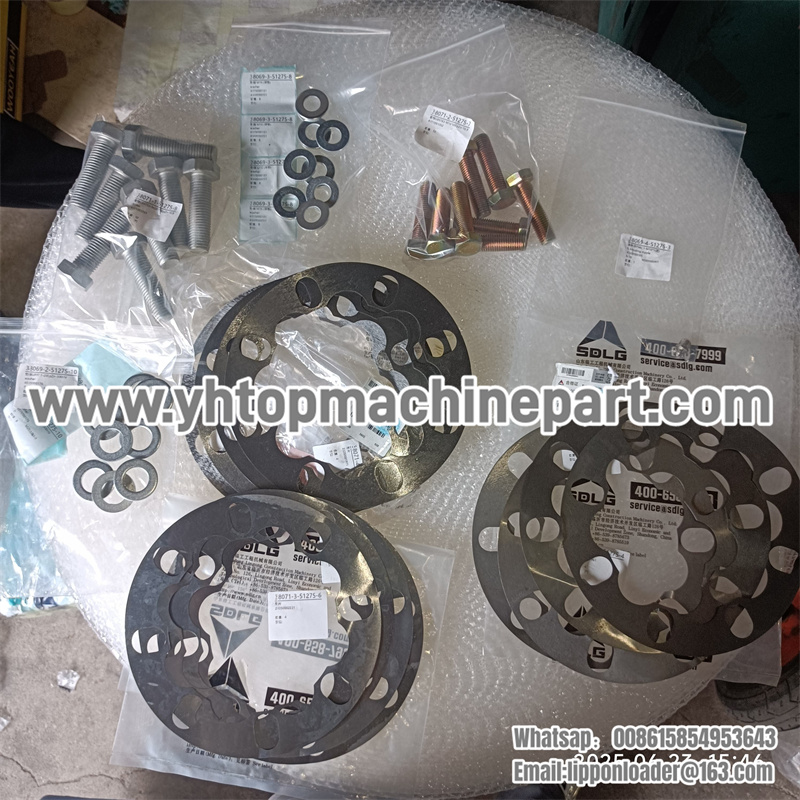

28350001961 28350001971 28350002231 Shim SDLG G9190 G9220 Grader Motor

1 摆架总成 Swing frame assembly 28350002011
2 工作装置 draw bar 28350000731
3 橡胶套 RUBBER SLEEVE 28350002071
4 球头总成 BALL STUD 28350001901
5 螺栓GB5783-M16*60EpZn-10.9 SCREW 4011001062
6 垫圈GB97.1-16EpZn-300HV WASHER 4015000181
7 垫片 SHIM 28350001961
8 垫片 SHIM 28350001971
9 垫片 SHIM 28350002231
10 螺栓GB5783-M20*70EpZn-10.9 SCREW 4011001063
11 垫圈GB97.1-20EpZn-300HV WASHER 4015000176
12 支座总成 BALL JOINT ANCHORAGE 28350001941
13 油杯JB7940.1-M10*1 LUBRICATING NIPPLE 4030000065
14 球头支架 BALL STUD 28350001911

1 联接架 DRAW BAR 28350000741
-28350000742 N 1
2 左盖板 PLATE 28350001551
3 油杯JB7940.1-M10*1 LUBRICATING NIPPLE 4030000065
4 螺栓GB16674-M10*20EpZn-8.8 BOLT 4011000447
5 回转架 ATTACHMENT BRACKET 28350001782
6 右盖板 PLATE 28350001561
7 小齿轮垫片 WASHER 28350001021
8 挡圈GB894.1-50-65Mn RETAINING RING 4015000046
9 关节轴承GB9163-GE50ES-2RS SPHERICAL PLAIN BEARING 4021000050
10 驱动齿轮 GEAR 28350001511
11 关节轴承GB9163-GE70ES-2RS SPHERICAL PLAIN BEARING 4021000043
12 回转臂 SWING PINION SHAFT 28350003661
13 回转油缸80*35*279.5-507 CYLINDER 4120004766
-4120008423 N 2
14 锁紧垫片 LOCKING PLATE 28350001641
15 螺栓GB5783-M10*25EpZn-10.9 BOLT 4011000993
16 垫圈GB97.1-10EpZn-300HV WASHER 4015000162
17 销轴 PIN 28350001631
18 关节轴承GB9163-GE35ES SPHERICAL PLAIN BEARING 4021000248
19 铲土角变换油缸100*50*260.5-562 CYLINDER 4120004771
20 销轴 PIN 28350001601
21 导向套垫片 PLATE 28350001491
22 螺栓GB5783-M10*30EpZn-10.9 BOLT 4011000763
23 夹板 CLAMPING PLATE 28350001501
24 螺栓GB5783-M16*60EpZn-10.9 SCREW 4011001062
25 垫圈GB97.1-16EpZn-300HV WASHER 4015000181
26 导向套 GUIDE BUSHING 28350001211
27 垫圈GB97.1-12EpZn-300HV WASHER 4015000168
28 螺栓GB5783-M12*25EpZn-8.8 BOLT 4011000197
29 开口销GB91-5*50EpZn-Q235A SPLIT PIN 4016000308
30 螺母GB6178-M24EpZn-10 NUT 4013000311
31 垫圈GB97.1-24EpZn-300HV WASHER 4015000167
32 M24*129自制 SCREW 28350001761
33 倾角支架总成 Tilting cradle 28350001051
34 铲刀引出油缸90*50*1346-1794 CYLINDER 4120004767
35 右挡板 PLATE 28350001581
36 左挡板 PLATE 28350001591
37 螺母GB6170-M30EpZn-10 NUT 4013000308
38 螺母GB6172.1-M30EpZn NUT 4013000309
39 垫片 SHIM 28350001701
40 垫片 SHIM 28350001711
41 垫片 SHIM 28350001721
42 铜销 PIN 28350002061
43 垫板 WEAR PART 28350001691
44 垫片 SHIM 28350001731
45 垫片 SHIM 28350001741
46 导向板 GUIDE PLATE 28350001681
47 垫板 WEAR PLATE 28350002101
48 铜螺钉 SCREW 28350002051
49 盖板 WEAR PART 28350001661
50 垫圈GB97.1-30EpZn-300HV WASHER 4015000119
51 盖板 WEAR PART 28350001651
52 螺栓GB5783-M27*100EpZn-10.9 SCREW 4011001061
53 螺母GB6172.1-M27EpZn NUT 4013000310
54 螺栓GB5782-M30*200EpZn-10.9 BOLT 4011000750
55 垫圈 WASHER 28350001751
56 夹板 CLAMPING PLATE 28350001671
57 齿轮驱动轴 SHAFT 28350002131
58 螺母GB889.1-M24EpZn-10 NUT 4013000314
59 回转阀齿轮 GEAR 28350002121
60 紧固螺母M42自制 NUT 28350002141
61 垫圈 WASHER 28350002151
62 挡圈GB894.1-25-65Mn RETAINING RING 4015000130
63 传动轴 SHAFT 28350002111
64 套筒 SLEEVE 28350002161
65 螺钉GB70.1-M12*45EpZn-8.8 SCREW 4014000081
66 P挡圈GB893.1-55-65Mn RETAINING RING 4015000272
67 挡圈GB894.1-35-65Mn RETAINING RING 4015000020
68 轴套 SLEEVE 28350002251
