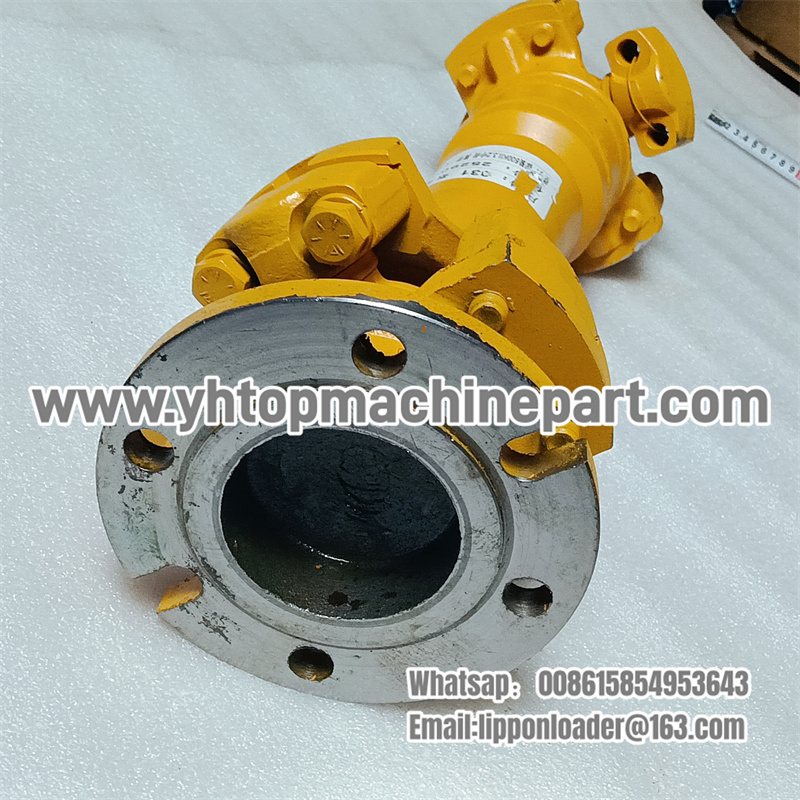

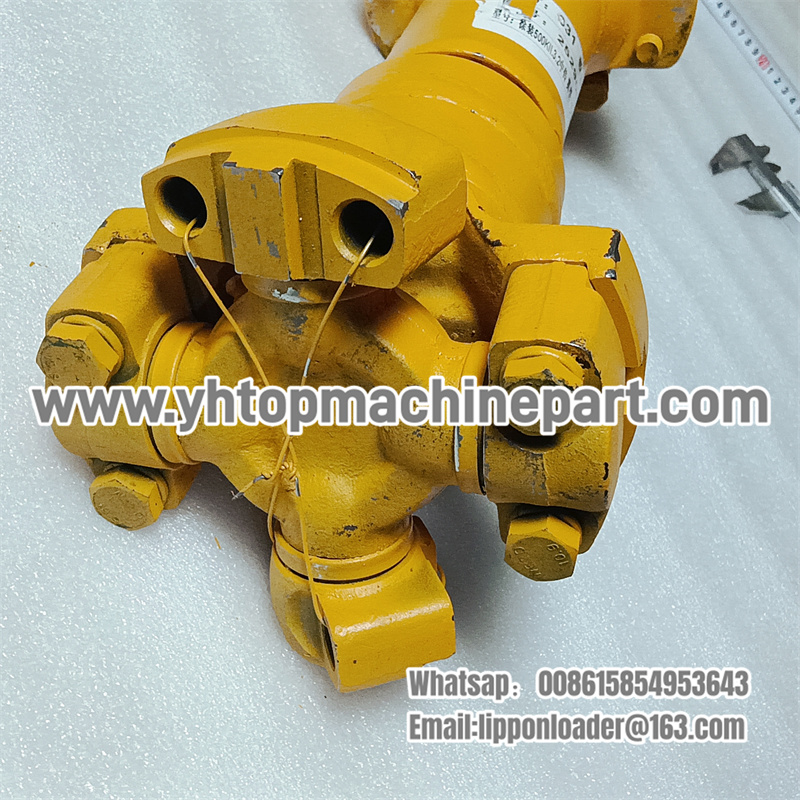

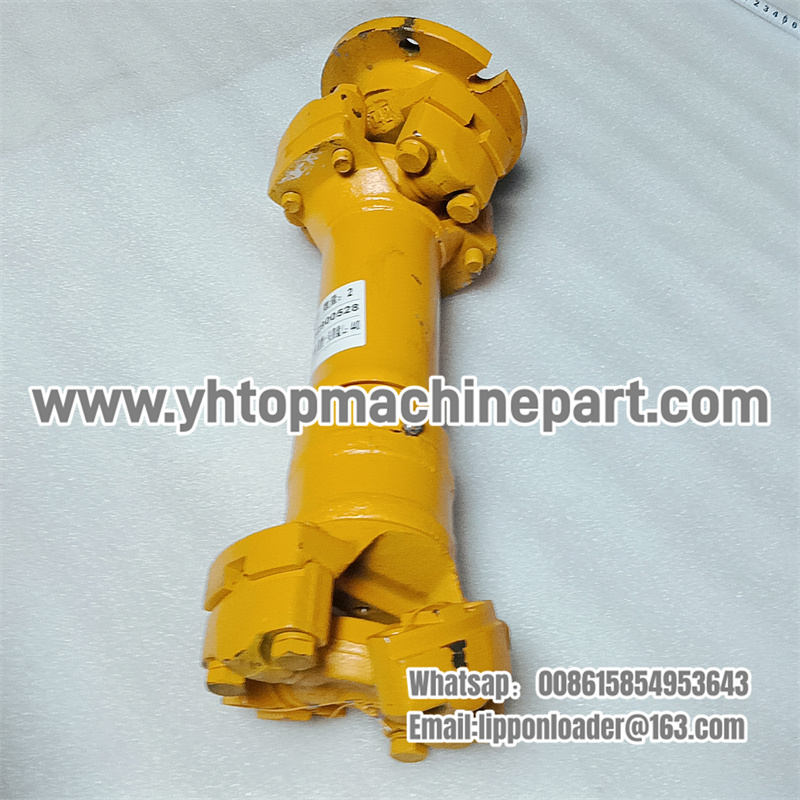

252900528 9360452 500KII.3.2 Middle Transmission Shaft XCMG LW500K Loader

LG853.04.04III 后驱动桥配件图册 SPARE PARTS MANUAL FOR REAR AXLE
轮边减速器总成 WHEEL REDUCTOR ASSEMBLY (36402000048)
Original No./Remarks
1 36400100042 制动盘 Brake disc 1 LG853.04.01-019
2 36400100039 制动盘螺栓 Bolts of brake disc 10 LG853.04.01-016
3 51401150107 垫圈20 Washer 20 10 GB/T93
4 51204090914 螺栓 M8×16 Bolt M8×16 8.8 6 GB/T5783
5 51401090107 垫圈8 Washer 8 6 GB/T93
6 36402100195 油封组件 Oil seal assembly 1 LG853.04.01-018/856
7 36400100040 垫圈 Washer 1 LG853.04.01-017
8 52326002301 轴承32024 Bearing 32024 1 GB/T297
9 51309001119 螺母 M22×1.5 Nut M22×1.5 10 10 GB/T6171
10 51401160107 垫圈22 Washer 22 10 GB/T93
11 36400100037 轮壳 Wheel shell 1 LG853.04.01-015
12 52324001901 轴承32221 Bearing 32221 1 GB/T297
13 36400100036 内齿轮 Internal gear 1 LG853.04.01-014
14 36400100035 圆螺母 Round nut 1 LG853.04.01-013
15 51139220305 螺钉 M10×25 Screw M10×25 8.8 1 GB/T70.1
16 36400100146 行星轮架 Planetary carrier 1 LG853.04.01-011B
17 36400100022 轮辋螺栓 Rim bolt 10 LG853.04.01-001
18 36400100023 轮辋螺母 Rim nut 10 LG853.04.01-002
19 36480000008 螺塞 Plug screw 1 LG853.04.01.05
20 36400100026 太阳轮 Sun wheel 1 LG853.04.01-005
21 51454410107 挡圈52 Retainer ring 52 1 GB/T894.2
22 36402100003 调整支柱 Adjusting support column 1 LG30F.04403A
23 51204111214 螺栓 M12×30 Bolt M12×30 8.8 12 GB/T5783
24 51401110107 垫圈12 Washer 12 12 GB/T93
25 36402100196 轮边端盖 Wheel-side end cover 1 LGQ856AL.01-009B
26 36402100031 档块 Link stopper 1 LG50F.04413A
27 36400100147 轮边垫片 Wheel-side shim 1 LG853.04.01-007B
28 52900000201 钢球9.525（3/8） 9.525（3/8）Steel ball 3 GB/T308
29 36400100030 行星轮轴 Planetary axletree 3 LG853.04.01-008
30 36402100086 行星齿轮垫片Ⅱ Planetary gear spacer 2 3 LGQ856AL.01-007
31 36400100034 挡环 Stop ring 6 LG853.04.01-012
32 52901000501 滚针5×45 Needle roller 5×45 93 GB/T309
33 36400100028 行星轮 Planetary gear 3 LG853.04.01-006
34 36402100083 行星齿轮垫片Ⅰ Planetary gear spacer 1 3 LGQ856AL.01-004
35 51401090107 垫圈8 Washer 8 2 GB/T93
36 60980002827 O 形圈 O-ring 1 LG853.04.01-003
1 36403100079 差速器螺栓 Differential bolt 8 LG853.04.01.02.02-007
2 36403100080 差速器右壳 Differential right casing 1 LG853.04.01.02.02-008
3 36403100078 半轴齿轮垫片 Half axle gear gasket 2 LG853.04.01.02.02-006
4 36403100076 半轴齿轮 Half axle gear 2 LG853.04.01.02.02-005
5 36403100072 十字轴 Cross axle 1 LG853.04.01.02.02-002B
6 36403100075 锥齿轮 Angle gear 4 LG853.04.01.02.02-004
7 36403100074 锥齿轮垫片 Angle gear gasket 4 LG853.04.01.02.02-003C
8 36403100070 差速器左壳 Differential left casing 1 LG853.04.01.02.02-001
9 51333000621 螺母 M14×1.5 Nut M14×1.5 10 8 GB/T9458
10 51512170101 销3×30 Pin 3×30 8 GB/T91
1 36401100013 防尘盖 Dust cover 2 LG853.04.01.01-005
2 36401100008 轮边支撑轴 Wheel-side bearing shaft 2 LG853.04.01.01-001
3 36401100009 制动钳支架 Bracket of brake caliper 2 LG853.04.01.01-002
4 36401100010 前后桥壳体 Front & rear axle casings 1 LG853.04.01.01-003
5 36401100016 后桥油管固定块 Fixing block for rear axle oil pipe 1 LG853.04.04.01-001
